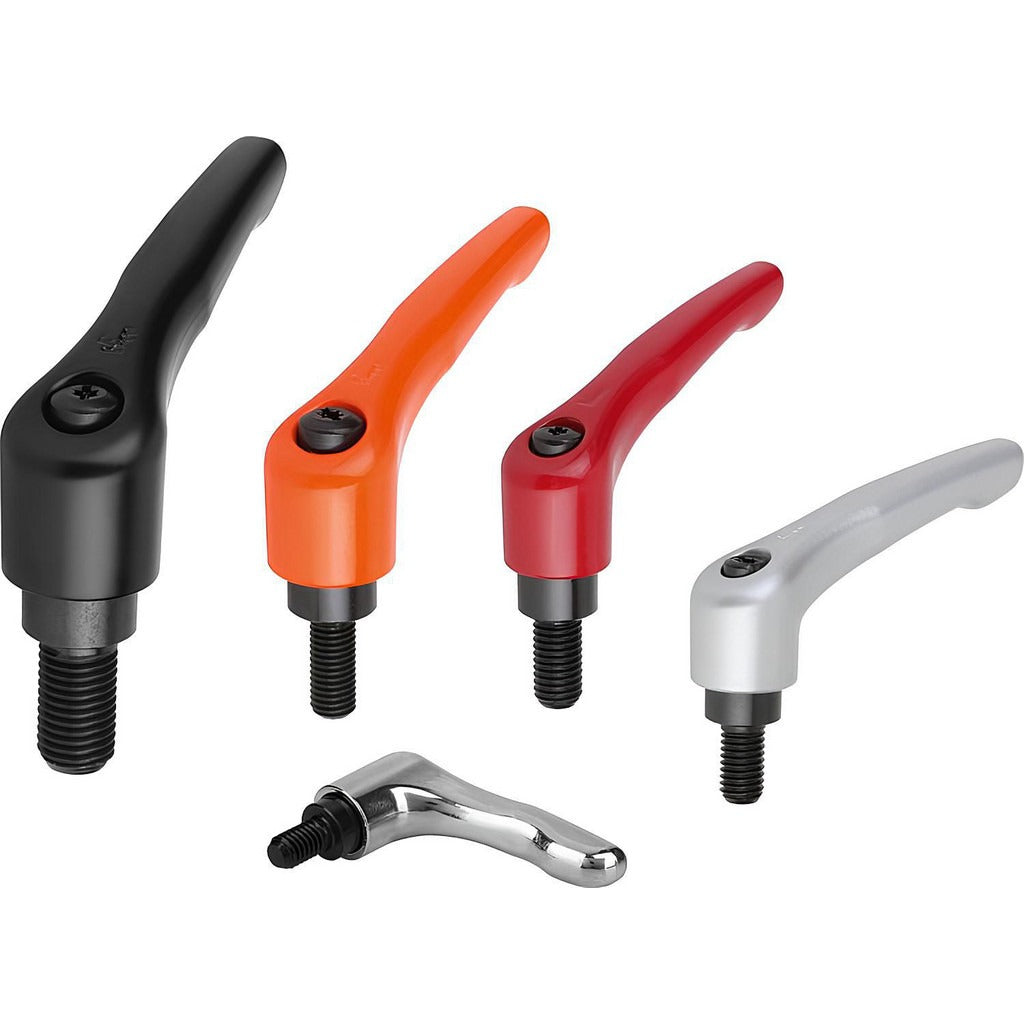

Kipp K0122.3081 Adjustable Clamping Handle M8 X 1.25

Product Description

The KIPP K0122.3081 is a threaded-hole adjustable clamping handle designed for secure manual clamping and positioning in industrial and mechanical applications. Constructed from die cast zinc with a powder-coated black finish, this handle features an M8 x 1.25 thread and a 21 mm hub diameter. The handle arm spans 80 mm in length and is set at a 20-degree angle for ergonomic leverage. Steel internal components with a black oxide finish add corrosion resistance and durability. This handle is installed by mechanical assemblers and maintenance technicians working on fixtures, jigs, machine tools, and similar equipment requiring repeatable hand-tightened clamping.

The K0122.3081 is suited for light industrial and precision mechanical applications where tool-free adjustability and reliable clamping are required. Typical installations include machine tool fixtures, workholding equipment, enclosure latching mechanisms, and positioning assemblies. The adjustable design allows the handle arm to be repositioned as needed to clear obstructions or optimize grip angle during operation. This part is used in both production and maintenance environments where M8-threaded mounting points are present.

Key Features

• M8 x 1.25 threaded hole connection with 14 mm threaded length and 24 mm hole depth
• Die cast zinc body with powder-coated black finish for durability and appearance
• Steel components with black oxide coating for added corrosion resistance
• 80 mm handle arm length at a 20-degree angle for ergonomic hand clamping
• 21 mm hub diameter and 16 mm base diameter for stable mounting footprint
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures and mechanical assemblies using M8 x 1.25 threaded mounting points requiring an adjustable clamping handle.

Installation Notes

Installation is performed by hand or with standard hand tools into any M8 x 1.25 threaded mounting point. Ensure the mating thread is clean and free of debris before installation. Power down and de-energize any associated equipment before servicing clamping hardware on active machinery. The adjustable arm should be repositioned before final tightening to confirm clearance and desired grip orientation.
