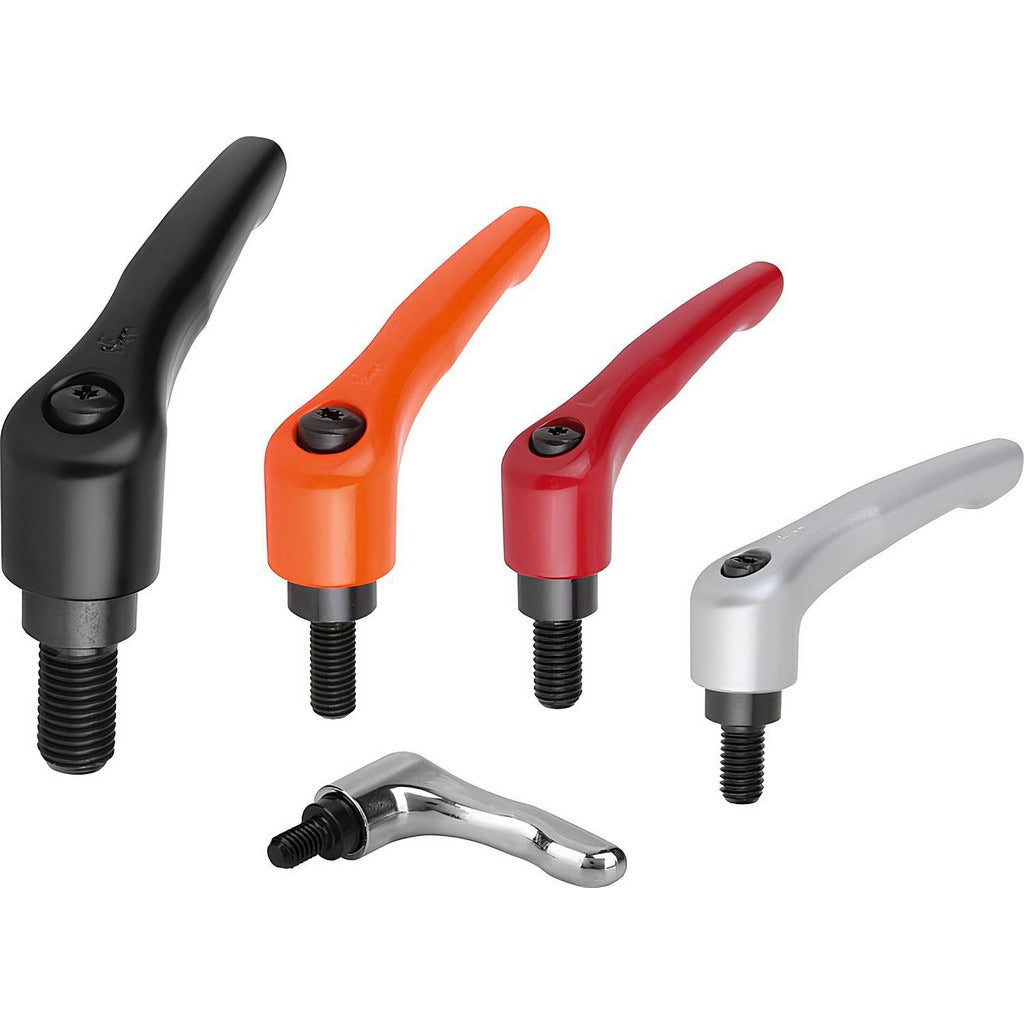

Kipp K0122.2A21 Adjustable Clamping Handle 1/4-20

Product Description

The KIPP K0122.2A21 is a threaded-hole adjustable clamping handle designed for secure, tool-free clamping and positioning in industrial and mechanical assemblies. The handle accepts a 1/4-20 threaded fastener and provides 2.56 inches of handle length with a modern-design arm set at a 20-degree angle for ergonomic grip and torque. The die cast zinc body carries a powder-coated black finish, while the steel components are treated with black oxide for corrosion resistance. Licensed trades and equipment technicians use this type of handle for quick-release fixtures, machine guards, jigs, and adjustment mechanisms where repeated hand-tightening is required.

This adjustable clamping handle is suited for light industrial, mechanical, and equipment assembly applications requiring a compact, hand-operable fastening point. The 1/4-20 thread size makes it compatible with standard machine thread hardware commonly found in fabrication, HVAC equipment panels, electrical enclosures, and tool fixtures. Its compact hub diameter of 0.73 inches and overall height of 1.79 inches allow installation in tight clearance areas. The threaded hole mount type simplifies integration into existing threaded bosses or inserts without additional hardware.

Key Features

• 1/4-20 threaded hole connection for direct engagement with standard machine thread fasteners
• 2.56-inch handle length with 20-degree arm angle for comfortable hand torque
• Die cast zinc handle body with powder-coated black finish for durability and appearance
• Steel internal components with black oxide coating for corrosion resistance
• Compact 0.73-inch hub diameter suits tight-clearance installations
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as an OEM-style replacement or direct-fit adjustable clamping handle for assemblies using 1/4-20 threaded inserts or bosses in light industrial, mechanical, and equipment panel applications.

Installation Notes

Installation is performed by hand or with light tooling by a qualified technician or mechanical assembler. Disengage or de-energize any associated equipment before installing or replacing clamping handles on machine guards or panels. Verify thread engagement depth against the 0.73-inch threaded length before final tightening to avoid thread stripping. Do not exceed hand-tight torque limits appropriate for die cast zinc components.
