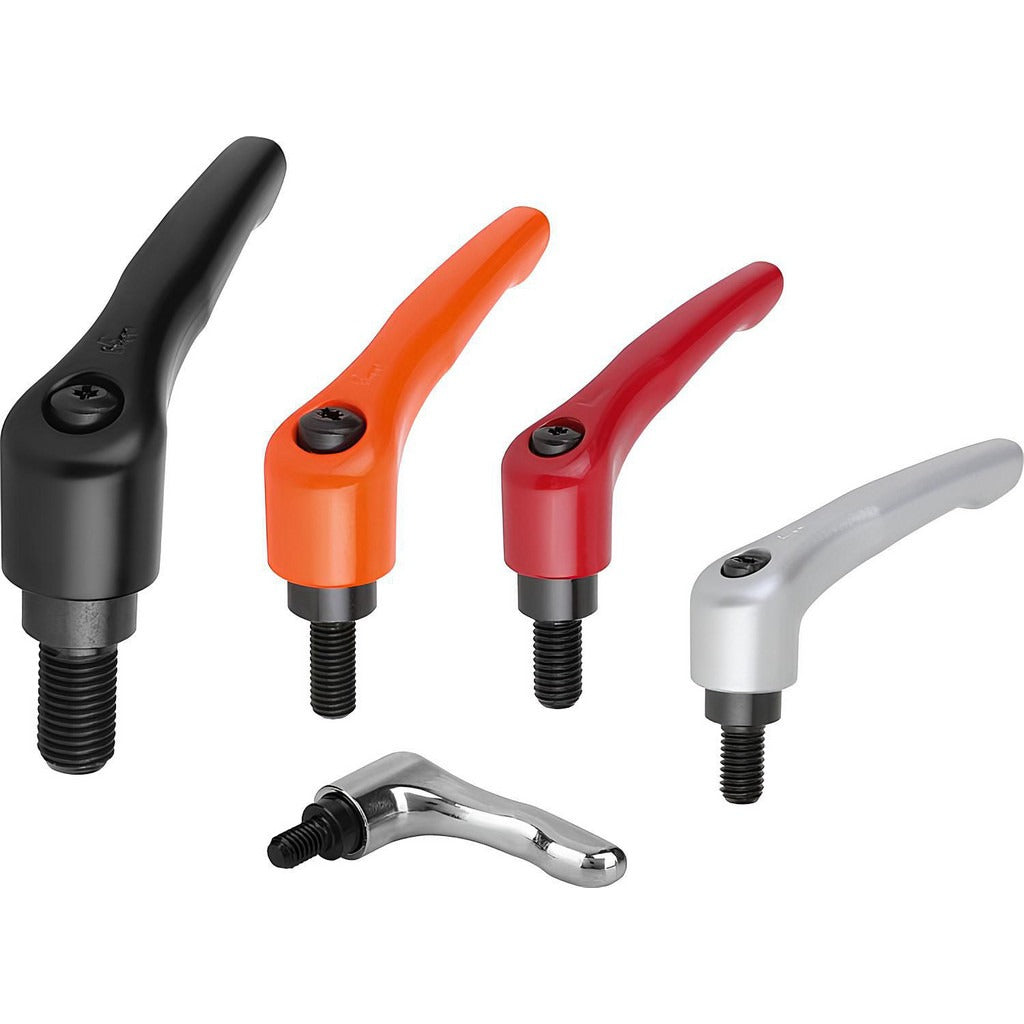

Kipp K0122.1A21 Adjustable Clamping Handle 1/4-20

Product Description

The KIPP K0122.1A21 is a threaded-hole adjustable clamping handle designed for secure manual clamping and positioning in industrial and mechanical assembly applications. Built from die cast zinc with a powder-coated finish, the handle delivers a 1.57-inch handle radius length and an overall height of 1.34 inches. The steel components feature a black oxide coating. The 20-degree arm angle allows the handle to be repositioned to clear obstructions during tightening, making it practical for confined or repetitive-adjustment installations. Licensed trades and machine assembly technicians specify this type of handle for fixtures, jigs, and equipment panels requiring frequent hand-tightening cycles.

This handle is suited for light industrial machinery, fabrication fixtures, machine guards, enclosures, and similar equipment where tool-free adjustability is needed. The 1/4-20 threaded hole connection fits standard fastener patterns found in a wide range of manufacturing and assembly equipment. With a compact body diameter of 0.51 inches and a base diameter of 0.39 inches, it fits in tight mounting zones. The powder-coated zinc handle arm and black oxide steel hardware resist corrosion in typical shop environments.

Key Features

• Adjustable 20-degree arm angle allows repositioning to clear obstructions during clamping
• Die cast zinc handle arm with powder coat finish for durability and grip
• Steel components with black oxide coating for corrosion resistance
• 1/4-20 threaded hole mount for standard fastener compatibility
• Compact 1.57-inch handle length suits confined mounting areas
• Compliant with DIN EN 12844, REACH, and RoHS requirements

Compatibility

Designed as a standard threaded-hole adjustable clamping handle for industrial fixtures, jigs, machine guards, and equipment panels using 1/4-20 threaded fastener patterns.

Installation Notes

Installation is performed by threading the handle onto a 1/4-20 fastener or stud by hand. Ensure the mating thread is clean and free of debris before installation. The adjustable arm should be repositioned before final seating to the desired clearance angle. No special tools or power lockout is typically required, though always follow the equipment manufacturer's safe-work procedures when servicing machinery.
