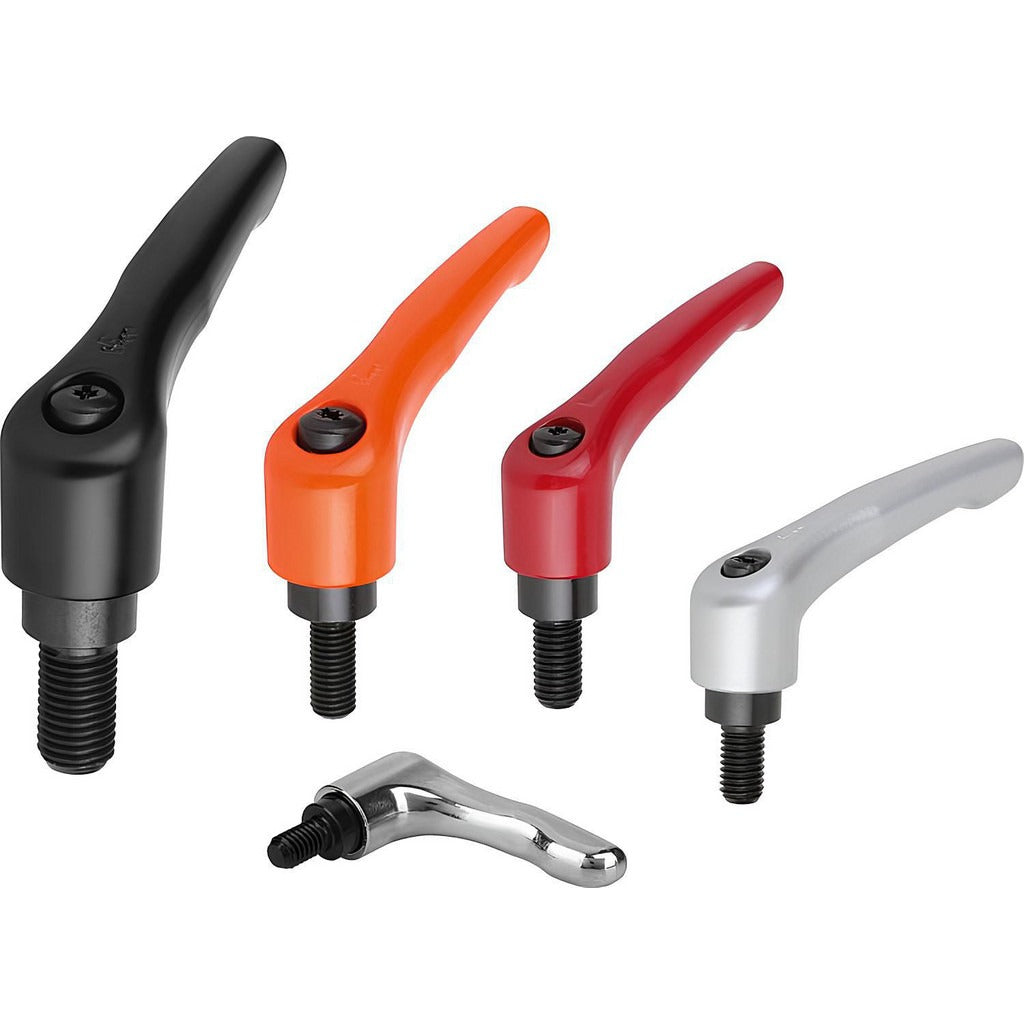

Kipp K0122.1051 Adjustable Clamping Handle M5x0.8

Product Description

The KIPP K0122.1051 is an adjustable clamping handle designed for tooling, fixturing, and machine adjustment applications. The handle features a die cast zinc body with a powder-coated finish and a black oxide-coated steel base, giving it durability in light industrial and workshop environments. It accepts an M5 x 0.80 threaded connection with a 9 mm threaded engagement depth. The hub diameter is 13 mm and the overall handle length is 40 mm. The handle arm is set at a 20-degree angle, supporting comfortable grip and repeatable hand-tightening in confined or repetitive-use setups. Licensed HVAC, mechanical, and industrial maintenance technicians commonly install these handles on jigs, clamps, and equipment panels.

This clamping handle is suited for light to medium-duty clamping and adjustment tasks on machine tools, fixtures, enclosures, and industrial equipment. Its compact profile, with a body height of 9 mm and overall height of 34 mm, fits tight mounting areas where conventional knobs or levers would not clear. The modern arm style and black finish make it a common fit for equipment requiring a clean, professional appearance alongside functional hand-tightening capability.

Key Features

• M5 x 0.80 threaded hole connection with 9 mm threaded depth and 13 mm hub diameter
• Die cast zinc handle body with powder-coated black finish for corrosion resistance
• Steel base components with black oxide coating
• 20-degree handle arm angle for ergonomic hand-tightening
• Compact overall height of 34 mm suits tight installation spaces
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as a standard M5 x 0.80 threaded hole adjustable clamping handle suitable for use on machine tools, fixtures, jigs, and industrial equipment panels requiring hand-tightening hardware.

Installation Notes

Installation requires only a matching M5 x 0.80 threaded stud or bolt on the target equipment. Ensure the mating thread is clean and undamaged before assembly. Hand-tighten only to the manufacturer-specified clamping force for the application; do not use power tools on the handle hub. Verify equipment is powered down or depressurized before servicing any attached assemblies.
