Kipp K0122.0A01X50 Adjustable Clamping Handle 10-24

Product Description

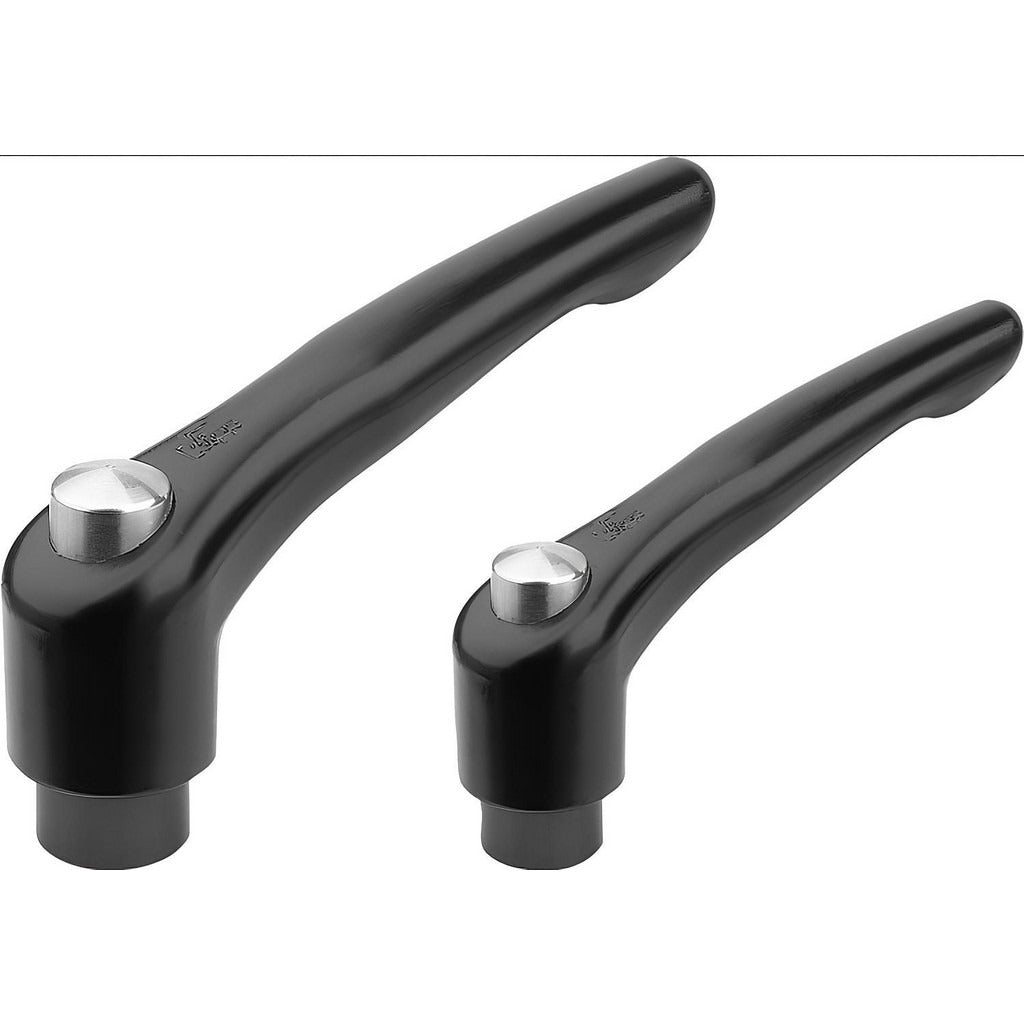

The KIPP K0122.0A01X50 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical applications. The handle features a die cast zinc body with a satin finish, paired with steel hardware components finished in black oxide. It accepts a 10-24 threaded stud and provides a handle length of 1.18 inches with a hub diameter of 0.55 inches. The modern-design arm pivots at a 20-degree angle, allowing quick repositioning to avoid obstructions during clamping. Machinists, tool builders, and fixture technicians commonly install this type of handle on jigs, fixtures, and machine components.

This handle is suited for light-duty clamping tasks in manufacturing, tooling, and assembly environments. Its compact profile makes it appropriate for tight-clearance installations where a fixed handle would interfere with adjacent components. The 10-24 thread size is common in precision tooling and light-industrial equipment. The stud length of 1.97 inches provides sufficient thread engagement for most standard fixture plates and machine panels. Overall height is 1.30 inches, keeping the handle low-profile on the mounting surface.

Key Features

• Die cast zinc handle body with satin finish for corrosion resistance and clean appearance
• Steel stud and components with black oxide coating
• 20-degree adjustable arm angle for clearance flexibility during clamping
• 10-24 threaded stud, 1.97 inches stud length for secure fixture engagement
• Compact hub diameter of 0.55 inches suits tight-clearance installations
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as an OEM-style replacement or direct-fit component for fixtures, jigs, and machine assemblies that use a 10-24 threaded stud adjustable clamping handle.

Installation Notes

Installation is performed by machinists or mechanical technicians using standard hand tools. Power down or de-energize any associated machine before installing or replacing clamping handles on live equipment. Thread the stud into the receiving hole to full engagement and confirm the handle pivots freely through its adjustment range without binding against adjacent surfaces. Follow applicable facility safety and machine-guarding requirements during installation.
