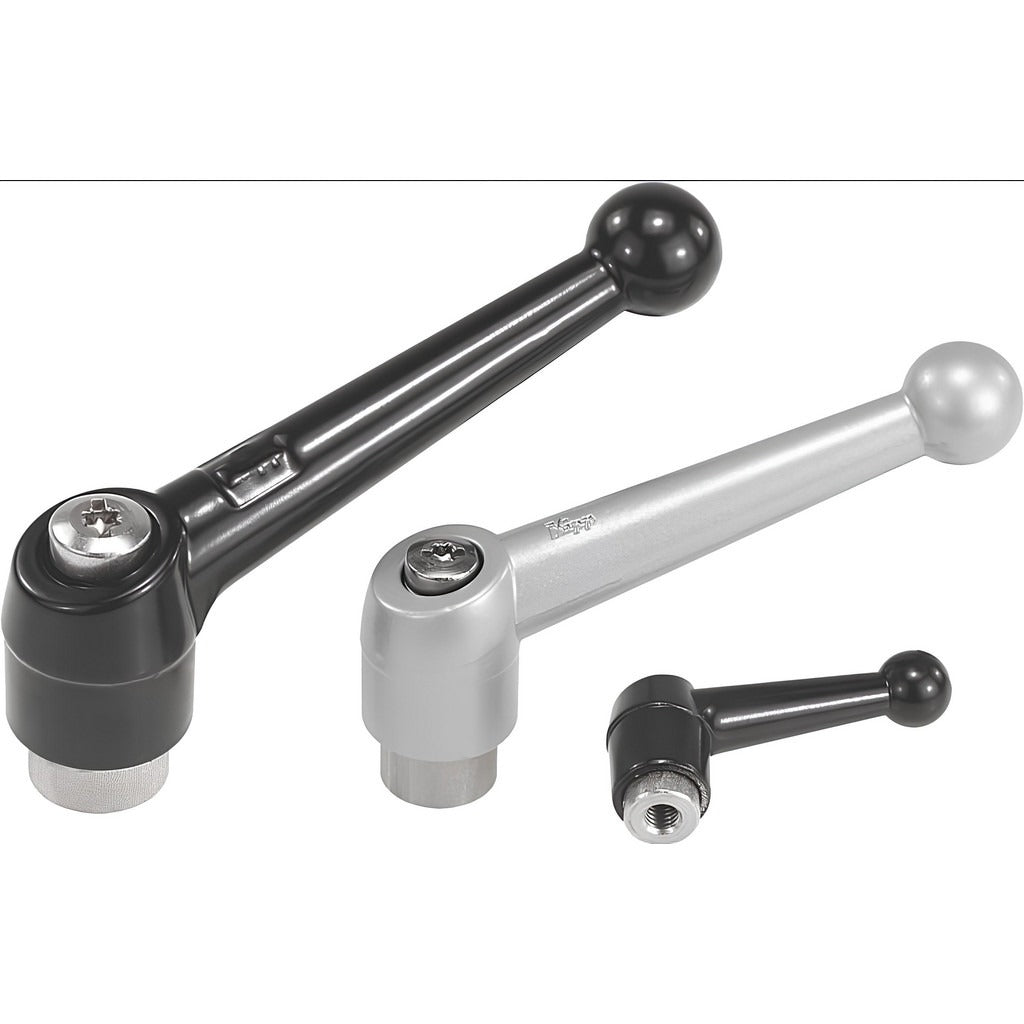

Kipp K0117.3A41X40 Adjustable Clamping Handle 3/8-16

Product Description

The KIPP K0117.3A41X40 is an adjustable clamping handle with a threaded stud mount, designed for secure, tool-free clamping and locking applications on machinery, fixtures, and industrial equipment. The handle body is die cast zinc with a powder-coated black finish and stainless steel stud and hardware components finished in black oxide. It carries a 3/8-16 threaded stud with a stud length of 1.57 inches and an overall handle length of 3.11 inches. The ball-end arm is angled at 20 degrees, allowing repositioning to clear obstructions in tight setups. Machinists, maintenance technicians, and equipment fabricators install this type of handle where repeatable manual clamping is required without tooling.

This adjustable clamping handle suits a wide range of industrial and light-duty machine applications including jigs, fixtures, work-holding devices, and equipment panels. The threaded stud connection allows direct installation into tapped holes or with a mating nut. The 20-degree adjustable arm can be repositioned to accommodate different grip angles and clearance requirements in confined mounting areas. It is appropriate for both OEM equipment builds and field retrofits where a standard 3/8-16 threaded mount is present.

Key Features

• 3/8-16 threaded stud connection for direct installation into tapped holes
• Adjustable ball-end arm angled at 20 degrees for clearance flexibility
• Die cast zinc body with powder-coated black finish for durability
• Stainless steel stud and hardware components with black oxide finish
• 1.57-inch stud length with 3.11-inch overall handle length
• Meets DIN EN 12844 material specification

Compatibility

Designed as an OEM-style replacement or upgrade for machinery, fixtures, and equipment requiring a 3/8-16 threaded stud adjustable clamping handle.

Installation Notes

Installation is performed by maintenance technicians or equipment fabricators using standard hand tools. De-energize and lock out any machinery before installing or replacing handles on active equipment. Thread the stud directly into a 3/8-16 tapped hole and secure to the specified torque for the application per equipment documentation. Adjust the handle arm angle before final tightening to confirm adequate clearance and grip access.
