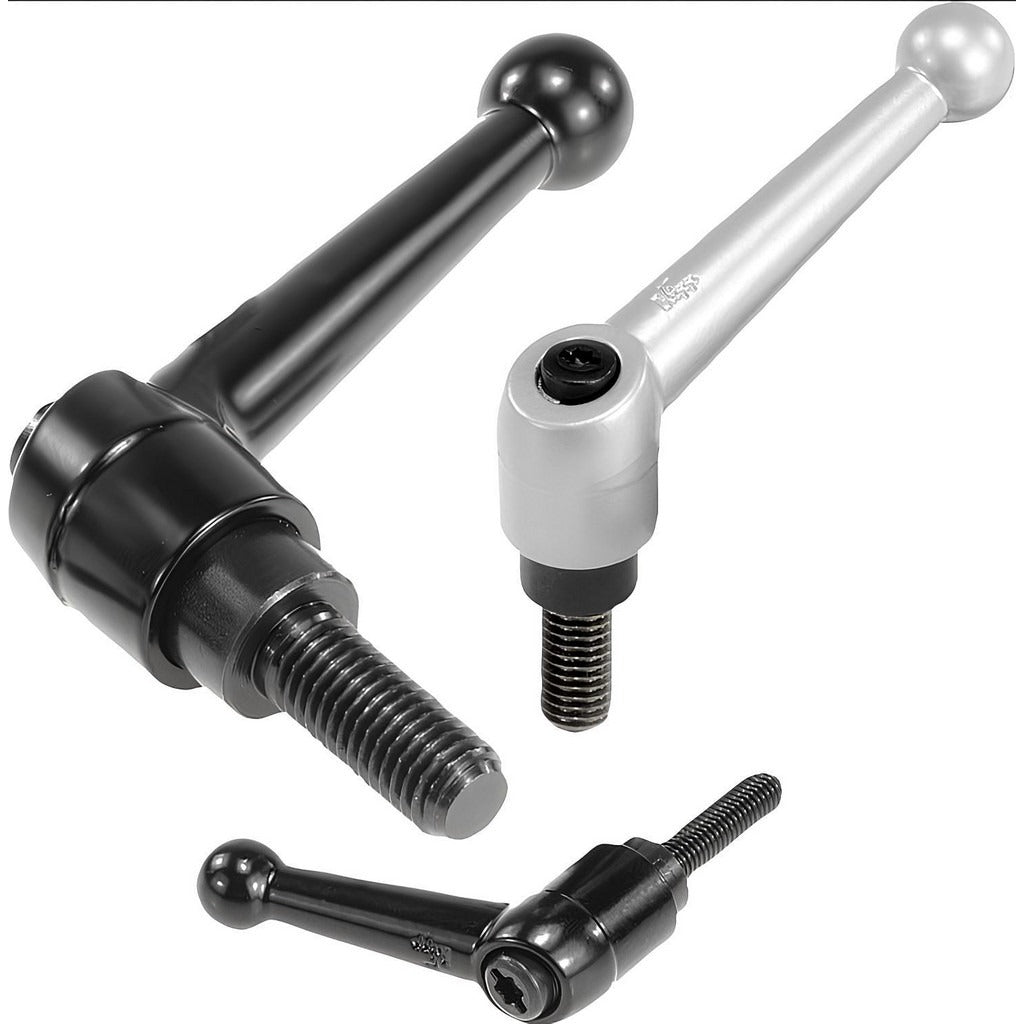

Kipp K0116.5A61X40 Adjustable Clamping Handle 5/8-11

Product Description

The KIPP K0116.5A61X40 is a threaded stud adjustable clamping handle designed for secure manual clamping and positioning in industrial machinery, fixtures, and equipment assemblies. The handle features a 5/8-11 threaded steel stud with a 1.57-inch stud length and a die cast zinc body finished in powder coat black. The ball-end arm is angled at 20 degrees, allowing operation in tight or obstructed spaces. Overall handle length is 4.33 inches and overall height is 3.31 inches. Licensed machinists, millwrights, and maintenance technicians install this type of handle as a direct-access clamping component on jigs, vises, and work-holding fixtures.

This handle is suited for use in both light industrial and precision manufacturing environments where repeatable manual clamping is required. Typical applications include machine tool fixtures, assembly jigs, inspection equipment, and adjustable guarding systems. The 5/8-11 thread size fits standard imperial-threaded mounting points common in North American industrial equipment. The knob diameter of 1.22 inches and hub diameter of 1.18 inches suit moderate-force clamping tasks where ergonomic hand grip is a priority.

Key Features

• 5/8-11 threaded steel stud with 1.57-inch threaded length for standard imperial mounting
• Die cast zinc handle body with powder coat black finish for corrosion resistance
• 20-degree angled ball-end arm allows use in confined or obstructed mounting locations
• Steel components with black oxide coating for added durability
• Compliant with DIN EN 12844, REACH, and RoHS standards
• Compact overall profile at 4.33 inches long and 3.31 inches tall

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial fixtures and equipment using a 5/8-11 threaded stud mount. Verify thread engagement depth and stud clearance against your specific fixture before installation.

Installation Notes

Installation requires powering down or de-energizing any equipment before removing or replacing clamping handles on active machinery. Thread engagement should be sufficient to fully seat the stud without bottoming out in a blind hole. A torque wrench or hand tightening per the equipment manufacturer's specification is recommended. Consult applicable machine guarding and lockout/tagout procedures per OSHA 1910.147 before service.
