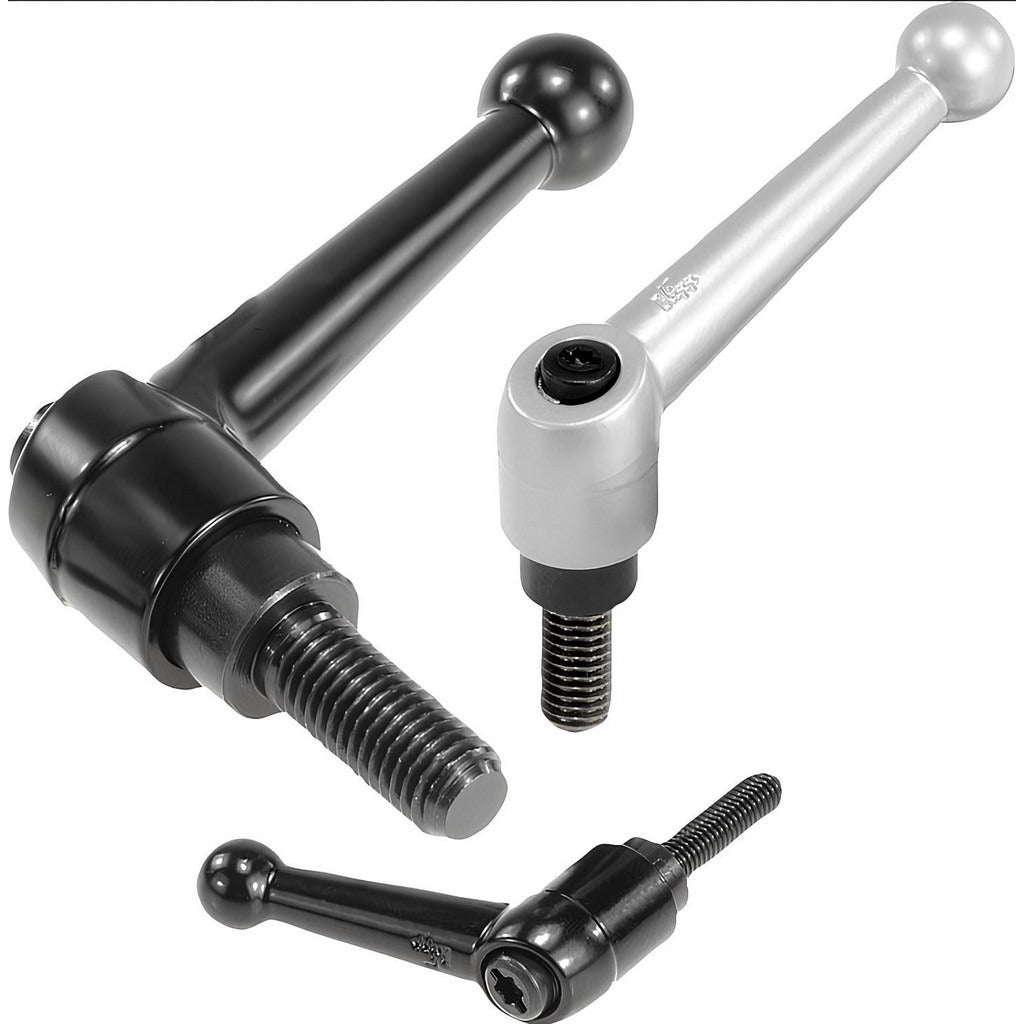

Kipp K0116.5A51 Adjustable Clamping Handle 1/2-13 Thread

Product Description

The KIPP K0116.5A51 is a threaded-hole adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical assemblies. The handle features a 1/2-13 threaded hole mount, a die cast zinc body with a powder-coated black finish, and a steel hub with a black oxide coating. At 4.33 inches in handle length and a 20-degree arm angle with a ball-end style, it provides ergonomic grip and firm locking in tight quarters. Compliant with DIN EN 12844, REACH, and RoHS standards, this handle suits applications where both durability and regulatory compliance are required.

This adjustable clamping handle is used in machine tool setups, fixture assemblies, jigs, and general industrial equipment where repeatable hand-tightened clamping is needed. The threaded-hole connection style allows direct installation onto 1/2-13 threaded studs or bolts. It is suitable for light to medium-duty clamping tasks in manufacturing, maintenance, and fabrication environments. Installation requires no special tooling and fits standard threaded fastener configurations common across a wide range of industrial machinery.

Key Features

• 1/2-13 threaded hole connection for direct stud or bolt mounting
• Die cast zinc handle body with powder-coated black finish for corrosion resistance
• Steel components with black oxide coating for added durability
• 20-degree handle arm angle with ball-end style for ergonomic grip and clearance in confined spaces
• Compliant with DIN EN 12844, REACH, and RoHS requirements
• 0.91 inches threaded engagement depth supports secure fastening without bottoming out

Compatibility

Designed as a direct-fit replacement or upgrade for adjustable clamping handles with a 1/2-13 threaded hole mount in standard industrial machine and fixture applications.

Installation Notes

Installation is performed by threading the handle onto a 1/2-13 stud or bolt by hand. Ensure the mating thread is clean and free of debris before assembly. De-energize or lock out any equipment before servicing clamping hardware on active machinery. Do not use impact tools on the handle body, as this may damage the zinc casting or thread engagement.
