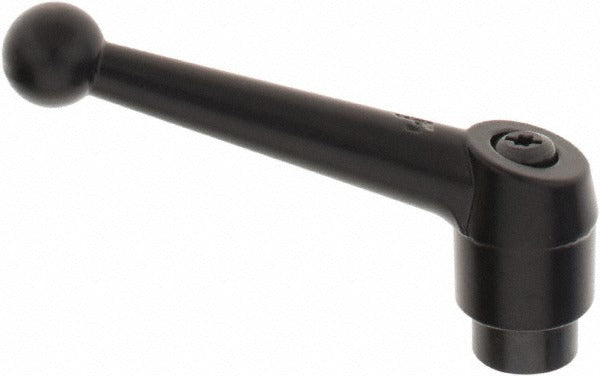

Kipp K0116.5161 Adjustable Clamping Handle M16x2

Product Description

The KIPP K0116.5161 is a tapped adjustable clamping handle designed for secure, tool-free clamping and locking in industrial machinery, fixtures, and equipment assemblies. The handle features an M16x2 threaded hole connection and a 30 mm hub diameter, with a zinc die cast body and steel internal components finished in black oxide. The powder-coated handle arm is set at a 20-degree angle with a ball-end style, giving operators a firm grip for repeated adjustment cycles. Overall length measures approximately 4.33 inches (110 mm) and overall height is approximately 3.31 inches (84 mm). Licensed technicians, machine builders, and industrial maintenance professionals typically specify this type of handle for positioning and clamping applications on production equipment and jigs.

This clamping handle suits a wide range of industrial and mechanical assembly applications where a threaded-hole mount is required. It is commonly installed on machine tool fixtures, workholding devices, jigs, and adjustment mechanisms that require frequent manual repositioning without the use of hand tools. The adjustable arm allows the handle to be repositioned radially to clear obstructions, making it practical in tight or congested equipment layouts. The black powder-coated finish and black oxide steel components provide resistance to surface wear in light industrial environments.

Key Features

• M16x2 threaded hole connection with 23 mm threaded engagement depth
• Adjustable ball-end handle arm at 20-degree angle for obstacle clearance during operation
• Zinc die cast body meeting DIN EN 12844 material specification
• Steel components with black oxide finish for wear resistance
• Powder-coated handle in black for durable surface protection
• Knob diameter of 31 mm and hub diameter of 30 mm for positive grip and alignment

Compatibility

Designed as a standard tapped adjustable clamping handle for industrial machinery, fixtures, and equipment using M16x2 threaded mounting points.

Installation Notes

Installation is performed by threading the handle directly onto an M16x2 male stud or bolt on the target equipment - no special tooling is required for mounting. Ensure the mating thread is clean and free of debris before engagement. Disengage or relieve any mechanical load on the clamping mechanism before adjusting or removing the handle. Follow applicable machinery safety and lockout/tagout procedures during installation on powered equipment.
