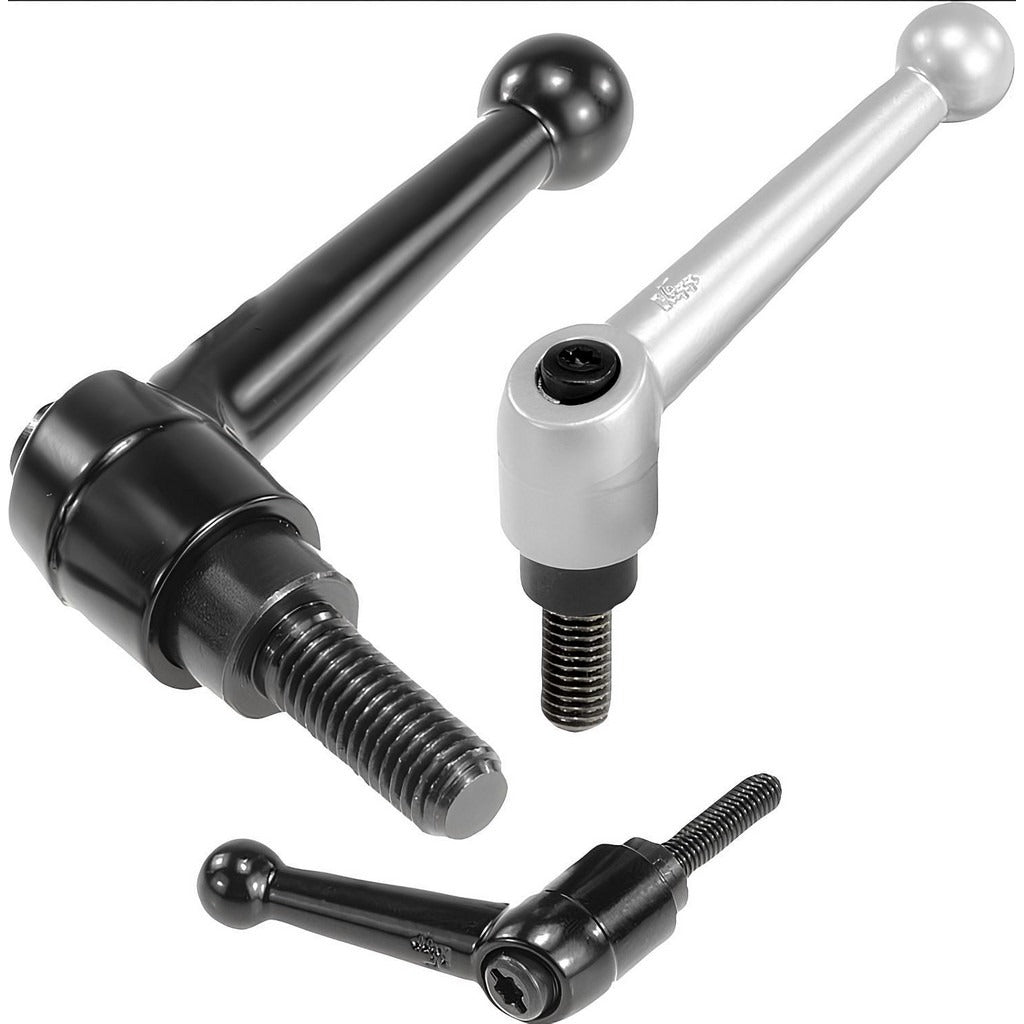

Kipp K0116.3A41X30 Adjustable Clamping Handle 3/8-16

Product Description

The KIPP K0116.3A41X30 is a threaded stud adjustable clamping handle designed for machine tool, fixture, and industrial equipment applications where secure, tool-free hand adjustment is required. The handle body is die cast zinc with a powder-coated black finish, and the threaded stud and internal components are steel with a black oxide coating. The adjustable design allows the handle arm to rotate freely and lock at the desired position, reducing interference with workpieces or guards during operation. The arm spans 3.11 inches in length and the overall assembly reaches 2.42 inches in height. Thread size is 3/8-16 with a 1.18-inch stud length.

This clamping handle suits light to medium-duty clamping and adjustment tasks on machine fixtures, enclosures, jigs, and industrial panels. The ball-end arm style and 20-degree arm angle provide comfortable grip and clearance in tight mounting areas. It is commonly installed by machine builders, maintenance technicians, and tool-and-die professionals on equipment requiring frequent manual adjustment or access panel fastening. The 0.83-inch hub diameter and 0.83-inch body diameter keep the footprint compact for close-spaced mounting layouts.

Key Features

• Adjustable handle arm rotates freely and locks, reducing interference during clamping operations
• Die cast zinc handle body with powder-coated black finish for corrosion resistance in shop environments
• Steel threaded stud and components with black oxide coating for added durability
• Ball-end arm style with 20-degree arm angle for ergonomic grip and installation clearance
• Compliant with DIN EN 12844, REACH, and RoHS standards
• Compact hub and body diameter suits close-spaced or space-constrained mounting positions

Compatibility

Designed as an OEM-style replacement or direct-fit adjustable clamping handle for machines, fixtures, jigs, and enclosures using a standard 3/8-16 threaded mounting point.

Installation Notes

Installation is performed by threading the stud directly into a tapped 3/8-16 hole on the target fixture or panel. Ensure the mating thread is clean and free of debris before installation. Disengage or de-energize any powered equipment before servicing or replacing clamping hardware. Do not exceed the rated clamping torque for the stud diameter, and verify thread engagement depth is sufficient for the application load.
