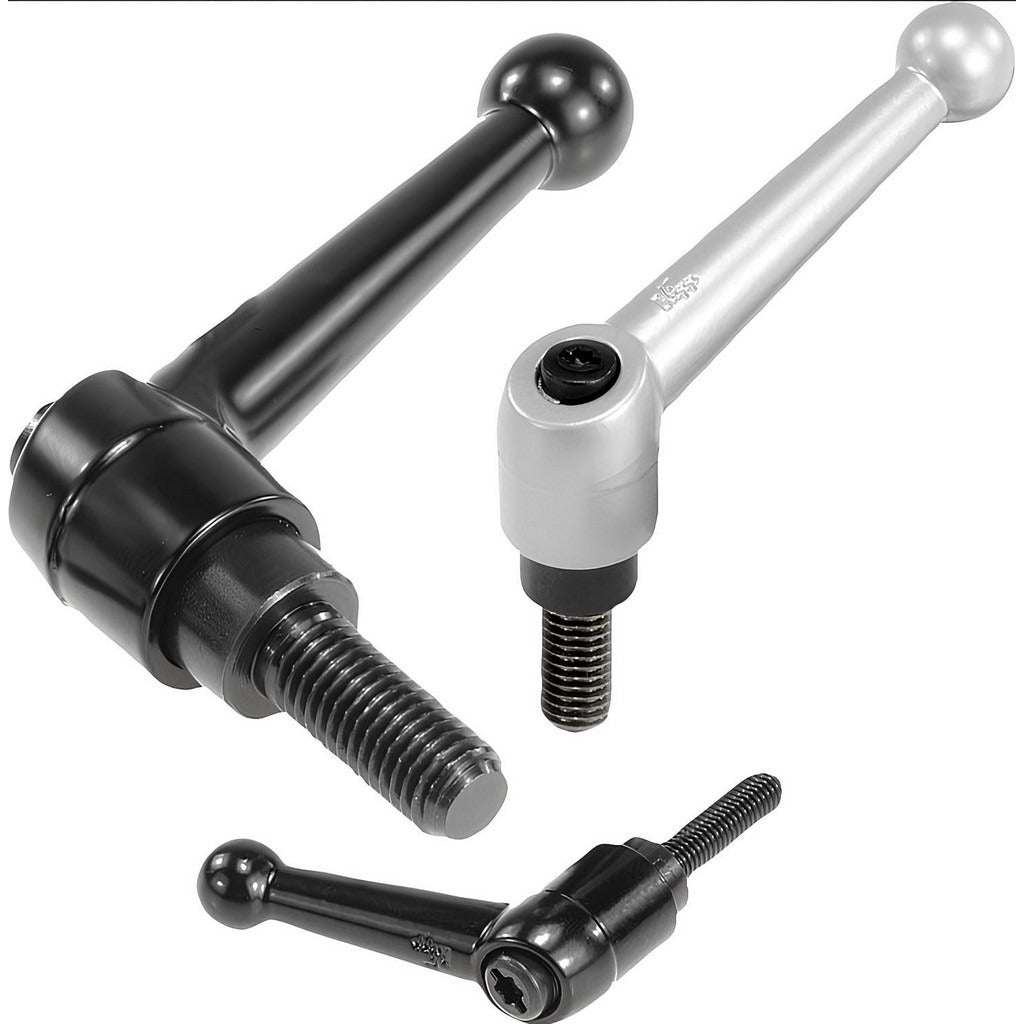

Kipp K0116.2A41X30 Adjustable Clamping Handle 3/8-16

Product Description

The KIPP K0116.2A41X30 is a threaded stud adjustable clamping handle designed for securing and releasing components on machine tools, fixtures, and industrial equipment. The handle features a die cast zinc body with a powder coated black finish and a steel stud finished in black oxide. The arm spans 2.52 inches in length, angles at 20 degrees with a ball end style, and the stud provides 1.18 inches of threaded engagement on a 3/8-16 thread. Machinists, toolmakers, and maintenance technicians install this type of handle where frequent manual adjustments are required without tools.

This adjustable clamping handle is suited for use on jigs, fixtures, machine guards, and positioning equipment in manufacturing and industrial maintenance environments. The 3/8-16 thread is a common fastener standard found across a wide range of machine tool components. The black powder coated finish provides corrosion resistance for light industrial use. Overall height is 1.95 inches, making it a compact option for space-constrained mounting locations.

Key Features

• 3/8-16 threaded stud with 1.18 inches of threaded length for secure engagement
• Die cast zinc handle body with powder coated black finish for durability
• Steel stud components with black oxide coating
• 20-degree handle arm angle with ball end style for comfortable grip and operation
• Compliant with DIN EN 12844, REACH, and RoHS standards
• Compact hub diameter of 0.71 inches for use in tight mounting configurations

Compatibility

Designed as an OEM-style replacement or upgrade clamping handle for industrial fixtures, jigs, and machine tool assemblies using standard 3/8-16 threaded mounting points.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using standard hand tools. Power down and de-energize any machine or fixture before servicing or replacing clamping handles. Ensure the mating threaded hole is clean and free of debris before threading in the stud. Do not exceed the manual torque appropriate for the application material and thread engagement length.
