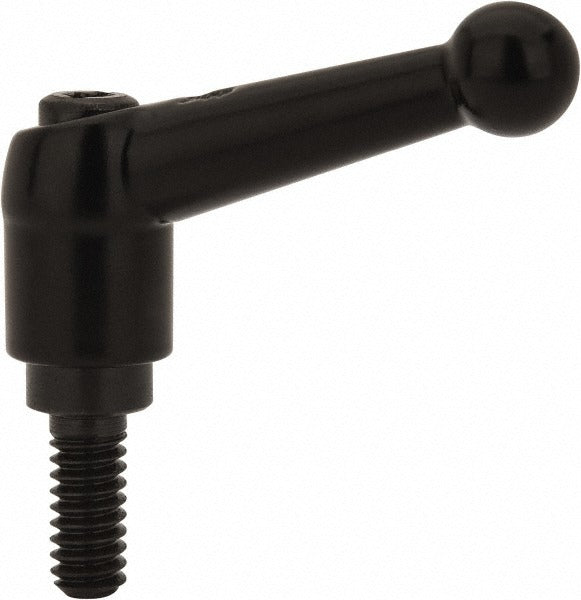

Kipp K0116.1A21X15 Adjustable Clamping Handle 1/4-20

Product Description

The KIPP K0116.1A21X15 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping and positioning in industrial and machine assembly applications. The handle body is die cast zinc with a powder-coated black finish, while the steel stud and steel components carry a black oxide finish. The arm pivots at 20 degrees and terminates in a ball end, giving technicians ergonomic grip leverage when tightening or releasing. The 1/4-20 threaded stud measures 0.59 inches in length, and the overall handle length is 1.54 inches, making this a compact solution for tight panel or fixture installations. Weight is 0.07 pounds.

This handle is well suited for light industrial equipment, jigs, fixtures, machine guards, and enclosures where repeated manual adjustment is required without tools. The threaded stud mount allows direct installation into tapped holes in metal panels, frames, or fixtures. Typical applications include production machinery, workholding equipment, and equipment covers that require frequent access. Licensed mechanics, machinists, and industrial maintenance technicians are the primary installers. The compact hub diameter of 0.51 inches keeps the installed footprint minimal in space-constrained assemblies.

Key Features

• Adjustable ball-end arm with 20-degree handle arm angle for ergonomic clamping leverage
• Die cast zinc body with powder-coated black finish for corrosion resistance and clean appearance
• Steel threaded stud and steel components with black oxide coating
• 1/4-20 threaded stud, 0.59 inches threaded length for direct tapped-hole installation
• Compact overall length of 1.54 inches and hub diameter of 0.51 inches for tight clearance applications
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as a direct threaded stud replacement or new-installation clamping handle for equipment, fixtures, and panels with 1/4-20 tapped mounting holes requiring manual adjustable clamping handles.

Installation Notes

Installation requires a properly tapped 1/4-20 hole in the mounting panel or fixture. Thread the stud in by hand, then snug with a wrench if required, taking care not to overtighten and strip the zinc body. Ensure the panel or fixture is de-energized or safely locked out before installing handles on electrical enclosures or machine guards. Follow applicable machine safety codes and equipment manufacturer guidelines for clamping force requirements.
