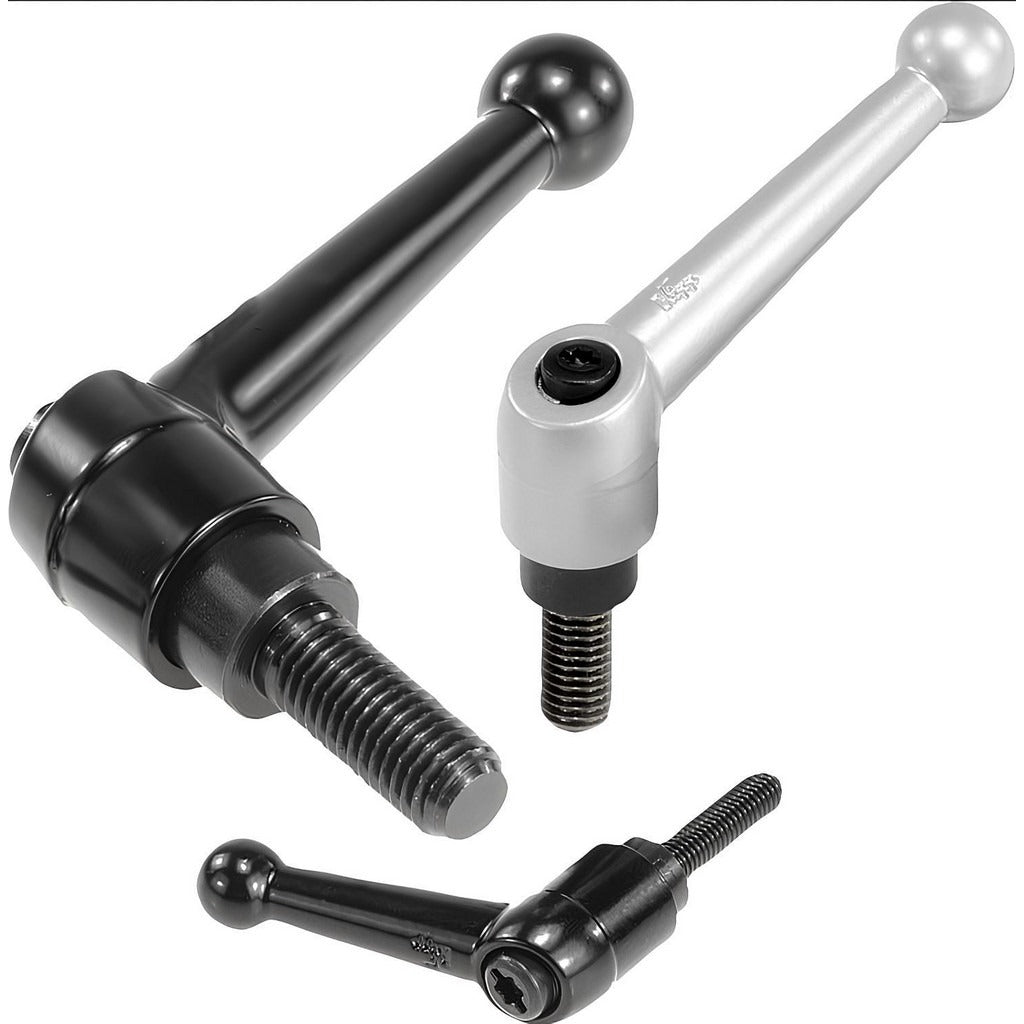

Kipp K0116.1A01X15 Adjustable Clamping Handle 10-24

Product Description

The KIPP K0116.1A01X15 is a threaded stud adjustable clamping handle designed for tool-free fastening and hand-tightening applications in industrial, machine tool, and fixture environments. The handle is constructed from powder-coated die cast zinc with a black oxide-finished steel stud and steel internal components, meeting DIN EN 12844 material specifications. The 10-24 threaded stud provides a standard connection point for mounting to machine frames, jigs, guards, and adjustment assemblies. At 1.54 inches in handle radius length and a compact 0.51-inch hub diameter, this handle suits tight-clearance installations where a low-profile grip is needed. Licensed trade assemblers, machine builders, and maintenance technicians are the primary installers.

This clamping handle is suited for light-duty clamping and positioning tasks on production equipment, inspection fixtures, enclosure panels, and tooling plates. The 20-degree arm angle and ball end style provide ergonomic hand grip during repeated adjustment cycles. It is appropriate for both OEM assembly and aftermarket replacement in industrial and commercial machinery where a 10-24 threaded stud interface is specified. The black powder-coated finish and black oxide hardware resist corrosion in typical indoor manufacturing environments.

Key Features

• 10-24 threaded stud connection for standard machine and fixture mounting
• Die cast zinc body with powder-coated black finish per DIN EN 12844
• Steel stud and steel internal components with black oxide coating
• 20-degree handle arm angle with ball end style for ergonomic grip
• Compact hub diameter of 0.51 inches for tight-clearance installations
• Stud length of 0.59 inches suits shallow threaded boss applications

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, machine tools, and equipment assemblies requiring a 10-24 threaded stud adjustable clamping handle.

Installation Notes

Installation is performed by hand or with standard hand tools; no power tools are required for typical stud engagement. Ensure the mating threaded boss or insert is clean and free of debris before threading the stud. Do not exceed the hand-tightening torque appropriate for 10-24 zinc hardware, as over-torquing may damage the die cast body. Verify thread engagement depth is sufficient before applying clamping load.
