Kipp K0116.1061X45 Adjustable Clamping Handle M6x1

Product Description

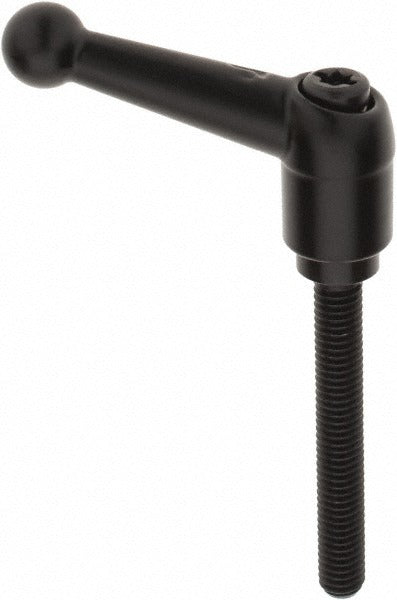

The KIPP K0116.1061X45 is a threaded stud adjustable clamping handle designed for securing and positioning components in industrial and mechanical assemblies. The handle features a die cast zinc body with a powder coated black finish and a steel threaded stud with a black oxide coating. The M6 x 1.00 mm thread and 45 mm stud length make it suited for applications requiring a compact, reliable hand-tightened fastening solution. The ball end arm style allows for ergonomic operation in confined spaces. Installation requires no tooling beyond hand force in most applications, and the handle is compliant with DIN EN 12844, REACH, and RoHS standards.

This clamping handle is used in machine tooling, fixture building, equipment manufacturing, and general industrial assembly where repetitive hand adjustment is needed. It fits applications calling for an M6 threaded stud mount with a short hub profile. Typical installation scenarios include clamping plates, guides, and adjustable stops on production equipment and jigs. The compact overall height of 32.50 mm suits low-clearance mounting positions on machine frames and enclosures.

Key Features

• M6 x 1.00 mm threaded stud with 45 mm threaded length for secure engagement
• Die cast zinc handle body with powder coated black finish for corrosion resistance
• Steel stud and components with black oxide coating
• Ball end arm style allows single-hand operation at a 20-degree arm angle
• Compliant with DIN EN 12844, REACH, and RoHS requirements
• Compact 32.50 mm overall height suits tight mounting clearances

Compatibility

Designed as a direct-fit adjustable clamping handle for industrial fixtures, machine tools, and mechanical assemblies requiring an M6 x 1.00 mm threaded stud connection.

Installation Notes

Installation is performed by qualified mechanical technicians or machinists. De-energize and lock out all equipment before servicing any clamping or positioning hardware on powered machinery. Thread the stud into the mating tapped hole by hand and verify full thread engagement before applying clamping load. Do not exceed the handle design load by using extension tools or additional leverage on the handle arm.
