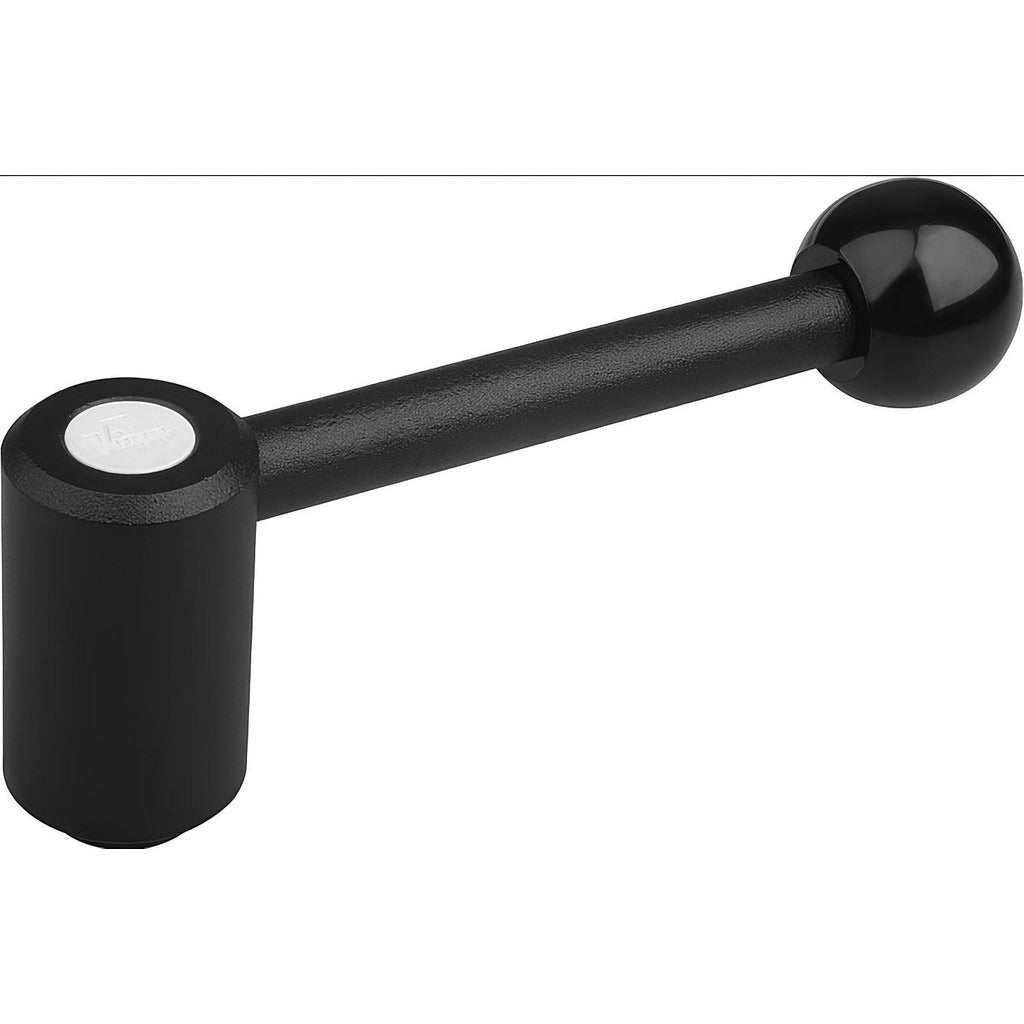

Kipp K0108.4A62X40 Tension Lever Handle 5/8-11 Thread

Product Description

The KIPP K0108.4A62X40 is an adjustable tension lever clamping handle designed for secure, tool-free clamping in industrial and machine-tool applications. Built from Grade 5.8 steel with a powder-coated black finish, this handle threads onto a 5/8-11 threaded stud and delivers repeatable clamping force through its adjustable friction mechanism. The straight-arm, ball-end lever measures 5.28 inches in handle length and sits at an overall height of 3.01 inches. The steel body and stud are paired with a plastic knob, keeping weight manageable at 2.2 pounds while maintaining structural rigidity under load. Licensed machinists, mechanical technicians, and industrial maintenance pros install these handles where frequent repositioning is needed without tooling.

This handle suits a wide range of positioning, clamping, and locking applications on machine tables, fixtures, jigs, workholding equipment, and industrial frames. The threaded stud mount makes it straightforward to retrofit onto existing 5/8-11 tapped holes in steel weldments, aluminum extrusions, or cast iron machine bases. It is appropriate for both light and moderate clamping loads in production and maintenance environments where repeated hand adjustment is part of the workflow.

Key Features

• Adjustable tension lever design allows tool-free clamping force control
• 5/8-11 threaded stud connection with 1.57 inches of threaded engagement length
• Grade 5.8 steel body and stud construction with powder-coated black finish
• Straight 0-degree arm with ball end for comfortable single-hand operation
• 1.61 inches hub diameter and 1.61 inches body diameter for stable base contact
• Plastic knob integrated into steel handle assembly for grip comfort

Compatibility

Designed for use in any application with a 5/8-11 tapped hole requiring an adjustable tension lever clamping handle with a threaded stud mount.

Installation Notes

Installation is performed by threading the stud directly into a prepared 5/8-11 tapped hole by hand. De-energize or lock out any machinery before installing or repositioning clamping handles on live equipment, in accordance with applicable OSHA lockout/tagout procedures. Verify that the mating thread depth accommodates the 1.57-inch stud length before final assembly. Do not exceed the rated clamping load for the handle size and thread class.
