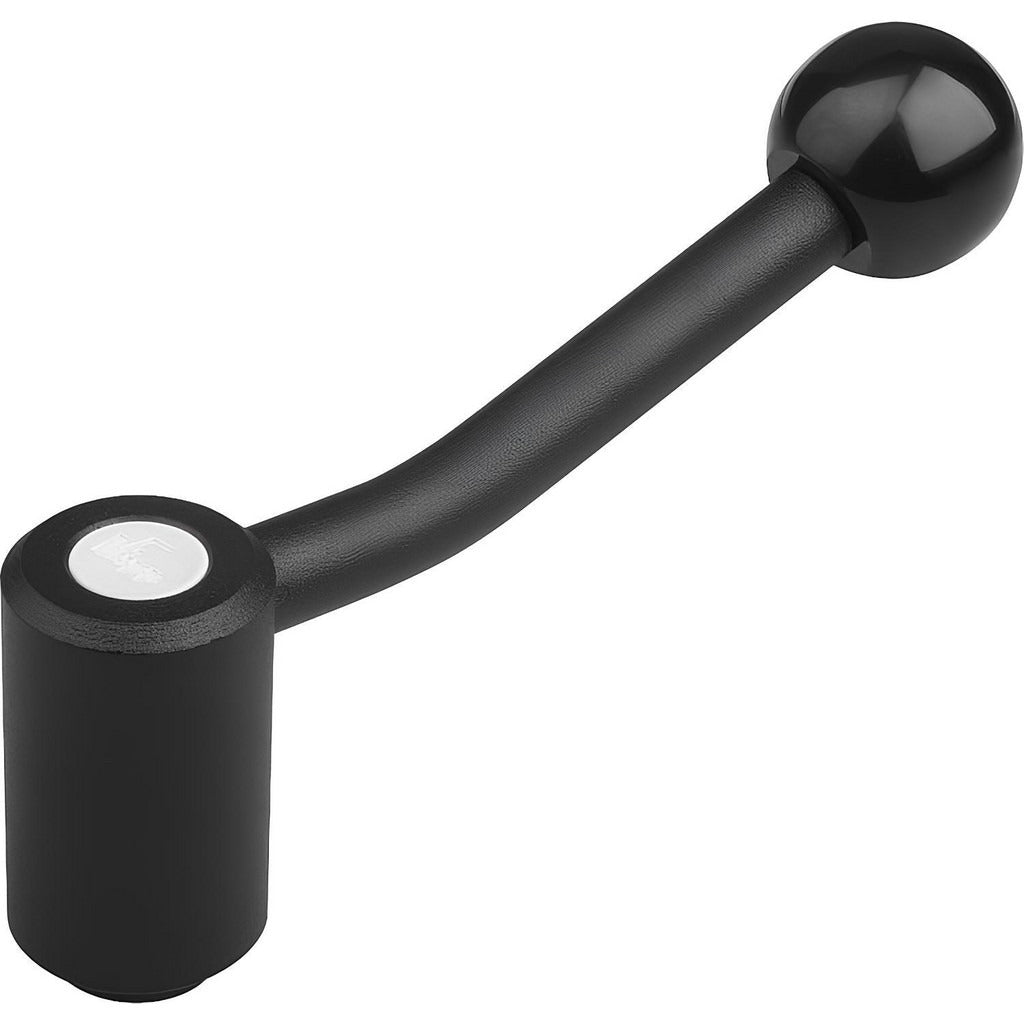

Kipp K0108.4241X50 Adjustable Clamping Handle M24x3

Product Description

The KIPP K0108.4241X50 is an adjustable tension lever clamping handle with a threaded stud mount, designed for use in industrial clamping, fixturing, and machine adjustment applications. The handle features a steel arm with a ball end and a powder-coated finish in black. The stud thread is M24 x 3.00, with a stud length of 1.97 inches and a hub diameter of 1.61 inches. The overall length is 5.06 inches and overall height is approximately 3.52 inches. The lever arm pivots at a 20-degree angle, allowing for repositionable clamping torque without fully removing the handle. Weighing 2.2 pounds, this handle is suited for machine tool, jig, and fixture installations requiring repeatable hand-tightened clamping.

This handle is used in industrial and manufacturing environments where hand-operable clamping is required on threaded stud assemblies. Typical applications include machine tool tables, workholding fixtures, jigs, and adjustable mechanical assemblies. The M24 x 3.00 thread size accommodates heavy-duty clamping loads. The adjustable lever design allows the handle arm to be repositioned to avoid obstructions in tight workspaces, making it practical for repeated use in production or maintenance settings. Installation is performed by machinists, millwrights, or maintenance technicians.

Key Features

• M24 x 3.00 threaded stud mount with 1.97-inch stud length for direct thread-in installation
• Adjustable tension lever arm repositions at 20-degree increments to clear obstructions
• Steel handle arm and stud construction rated to Grade 5.8 material specification
• Powder-coated black finish on both handle and body components for corrosion resistance
• Ball-end handle arm style for comfortable hand grip during tightening
• Plastic knob integrated into the handle assembly for controlled grip feel

Compatibility

Designed as an OEM-style replacement or direct-install clamping handle for industrial fixtures, machine tool assemblies, and adjustable mechanical components using an M24 x 3.00 threaded stud interface.

Installation Notes

Installation is performed by threading the stud directly into a tapped M24 x 3.00 hole in the target assembly. De-energize or lock out any machinery before servicing clamping components on powered equipment. Ensure the mating thread is clean and free of debris before installation to avoid cross-threading. Tighten by hand using the lever arm; do not use power tools on the handle mechanism.
