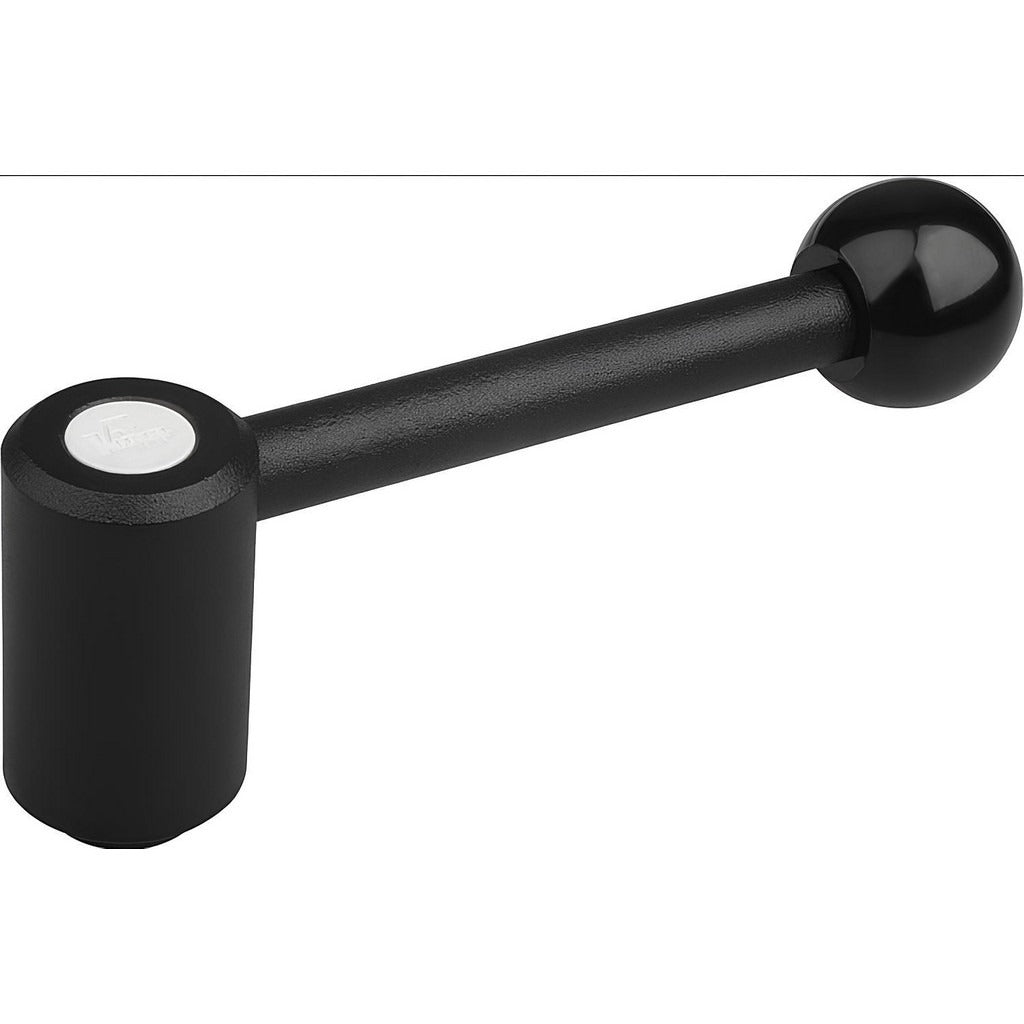

Kipp K0108.4202X80 Tension Lever Clamping Handle M20

Product Description

The KIPP K0108.4202X80 is an adjustable tension lever clamping handle with a threaded stud mount designed for industrial clamping and positioning applications. Built from Grade 5.8 steel with a powder-coated finish, this handle provides reliable manual clamping force where repeatable positioning and hand-tightening are required. The straight-arm, ball-end lever design allows controlled torque application without additional tools. Key dimensions include a 3.15-inch stud length, a 1.61-inch hub diameter, and an overall length of 5.3 inches. Installed by machinists, maintenance technicians, and industrial equipment assemblers, this handle suits fixtures, jigs, and machine guarding setups.

This handle is suited for use on industrial machinery, fixtures, jigs, machine guarding, and workholding equipment where manual clamping and quick adjustment are needed. The M20 x 2.5 threaded stud interfaces with standard metric-threaded mounting points. Applications span general manufacturing, tooling setups, and equipment maintenance environments where hand-adjusted clamping is preferred over tooled fasteners. The black powder-coated steel body and plastic knob provide durability under repeated handling in light-industrial and shop-floor conditions.

Key Features

• M20 x 2.5 threaded stud mount for direct installation into metric-threaded receivers
• Grade 5.8 steel construction with powder-coated finish for corrosion and wear resistance
• Straight 0-degree arm with ball end for comfortable hand-tightening
• 3.15-inch stud length with 60 mm threaded engagement length
• 1.61-inch hub diameter and 41 mm body diameter for stable clamping base
• Plastic knob with 32 mm diameter provides grip comfort during adjustment

Compatibility

Designed as an OEM-style replacement or direct-install clamping handle for industrial fixtures and machinery with M20 x 2.5 metric-threaded mounting points.

Installation Notes

Installation is performed by maintenance technicians or machine assemblers familiar with metric fastener systems. De-energize and lock out any machinery before installing or replacing clamping handles on live equipment. Thread the stud into the receiving mount by hand first, then tighten to the required clamping position using the lever arm. Do not use impact tools or pipe extensions on the lever arm, as this may exceed the handle's rated clamping load.
