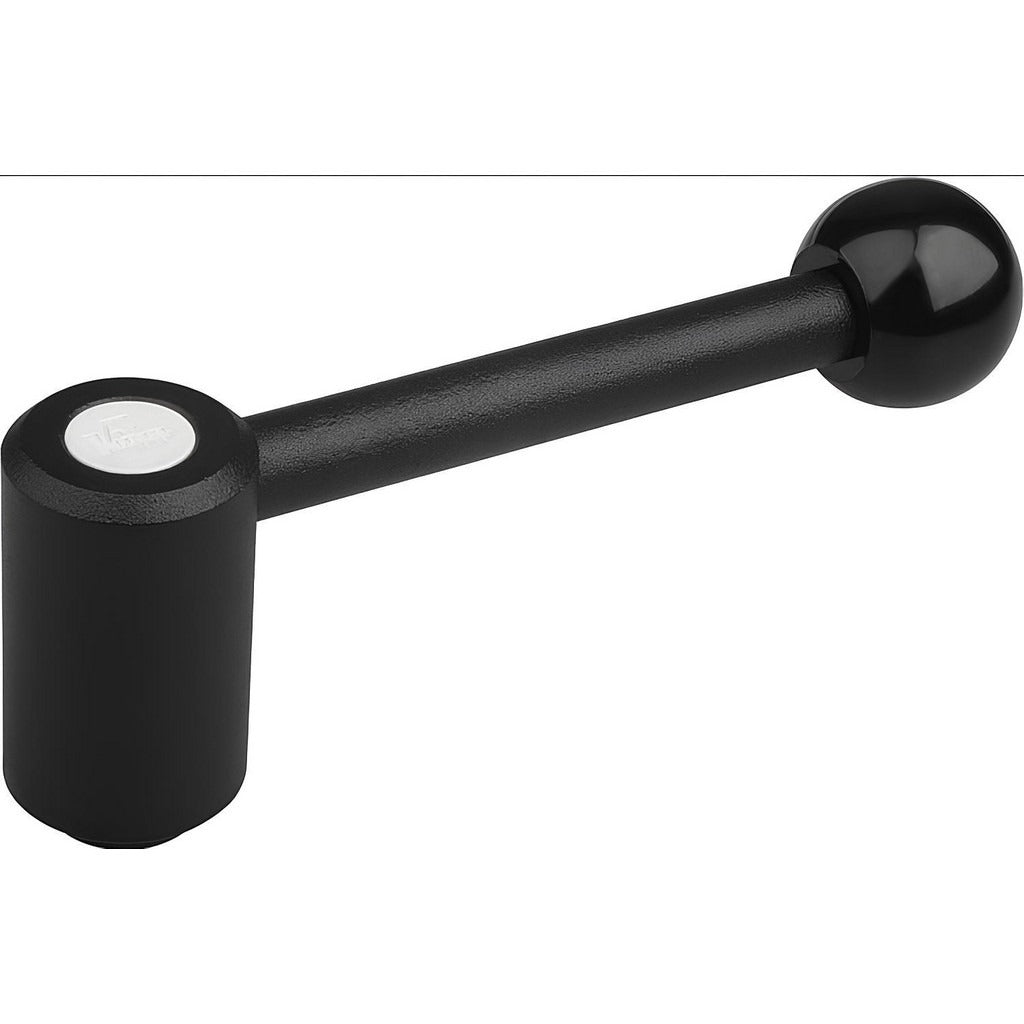

Kipp K0108.4202X30 Adjustable Tension Lever Handle M20x2.5

Product Description

The KIPP K0108.4202X30 is an adjustable tension lever clamping handle with a threaded stud mount designed for use in industrial machinery, fixtures, and equipment assemblies. It features an M20x2.5 threaded stud with a 1.18-inch stud length and a 1.61-inch hub diameter. The steel handle arm is powder coated black and terminates in a ball-end style, providing a secure, ergonomic grip. The body and stud are constructed from Grade 5.8 steel, while the knob is plastic. Total overall length is 5.28 inches. Maintenance technicians, machine builders, and industrial assembly professionals typically install this type of handle.

This clamping handle is suited for use on industrial equipment panels, machine guards, jigs, fixtures, and adjustment mechanisms where quick manual clamping or locking is required without tools. The straight 0-degree handle arm angle allows for unobstructed actuation in tight or flat mounting configurations. It is appropriate for both light and moderate clamping-force applications in manufacturing, fabrication, and maintenance environments where frequent adjustment or repositioning is needed.

Key Features

• M20x2.5 threaded stud mount for direct installation into tapped holes
• 1.18-inch stud length with 30 mm threaded engagement length
• Grade 5.8 steel body and stud construction for reliable clamping force
• Powder-coated black finish on both handle arm and body components
• Ball-end handle arm style for comfortable manual grip
• Straight 0-degree arm angle for flat-panel and flush-mount applications

Compatibility

Designed as a direct-mount replacement or original-installation clamping handle for equipment and fixtures with M20x2.5 threaded mounting points requiring an adjustable tension lever style handle.

Installation Notes

Installation is performed by threading the stud directly into a tapped M20x2.5 hole in the mounting surface. Ensure the mating thread is clean and free of debris before installation. Power down or de-energize any equipment before servicing panels or guards on which this handle is mounted. Verify the handle pivot and tension mechanism moves freely through its full range before returning equipment to service.
