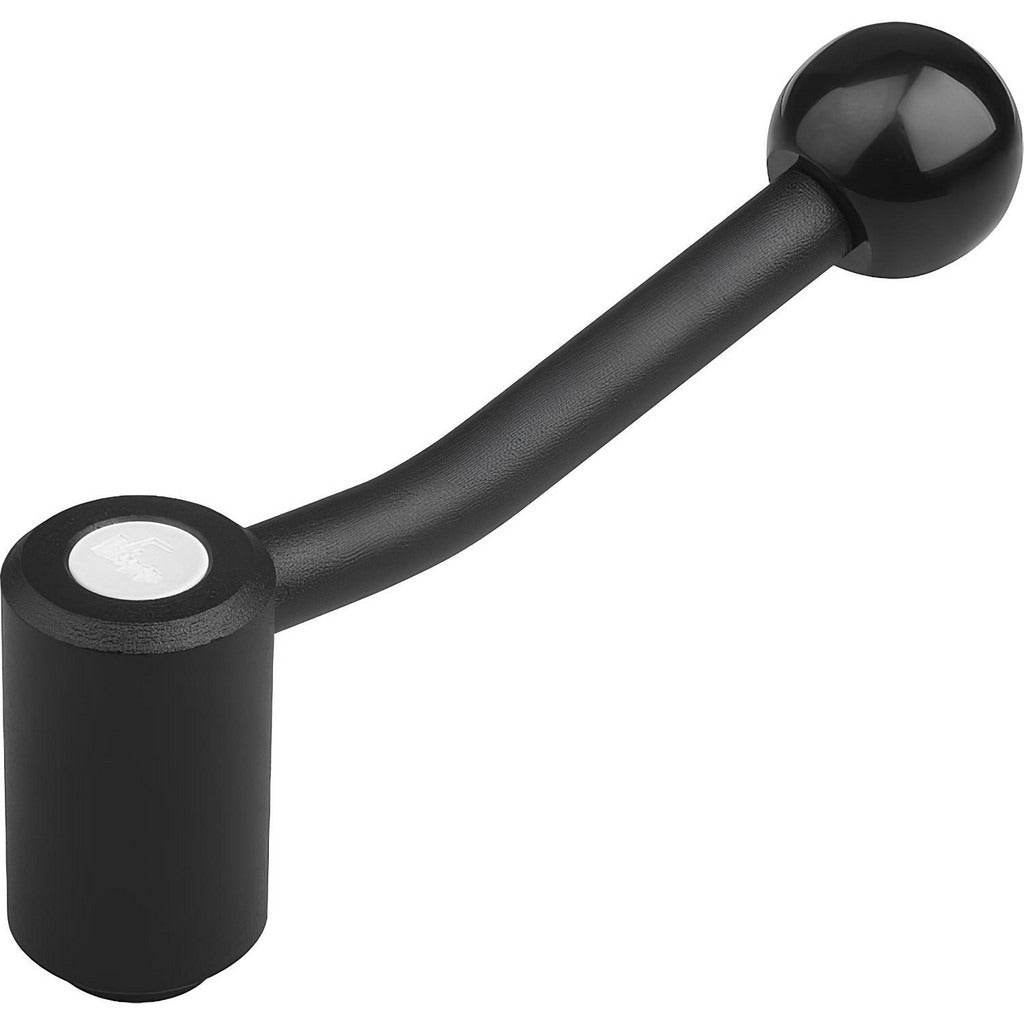

Kipp K0108.3A61X25 Tension Lever Handle 5/8-11 Thread

Product Description

The KIPP K0108.3A61X25 is an adjustable tension lever clamping handle with a threaded stud connection designed for secure, repeatable clamping in industrial and mechanical applications. The handle features a steel construction with a powder-coated finish and a ball-end arm style. It accepts a 5/8-11 threaded stud, with a stud length of 0.98 inches and an overall handle length of 5.06 inches. The hub diameter measures 1.3 inches. The lever arm sits at a 20-degree angle, allowing controlled tension adjustment in tight or awkward mounting positions. Licensed machinists, toolmakers, and industrial maintenance technicians are the typical installers.

This clamping handle is suited for use on machine tools, fixtures, jigs, workholding equipment, and industrial machinery where a positive hand-tightened clamp is required. The threaded stud mount allows direct installation into a tapped hole or onto a threaded rod. The adjustable tension feature makes it practical for applications where the handle position needs to be repositioned to avoid obstructions or to optimize operator access. The Grade 5.8 material specification indicates a mid-strength steel appropriate for general industrial clamping loads.

Key Features

• Adjustable tension lever design allows handle arm repositioning for flexible installation orientations
• 5/8-11 threaded stud connection for direct mounting into tapped holes or onto threaded rods
• Steel body and stud with powder-coated black finish for corrosion resistance and durability
• Ball-end arm style for comfortable hand grip during tightening and release
• 20-degree handle arm angle reduces interference in confined mounting areas
• Grade 5.8 material specification suited for general-purpose industrial clamping applications

Compatibility

Designed as a direct-mount threaded stud clamping handle for any fixture, jig, machine tool, or industrial equipment with a 5/8-11 tapped mounting point.

Installation Notes

Installation is performed by threading the stud directly into a prepared 5/8-11 tapped hole; no special tools are required beyond standard hand tools for initial positioning. Power down or lock out any machine before installing or repositioning clamping handles on active equipment. The tension adjustment mechanism should be set and verified before placing the assembly under load. Do not exceed the clamping load appropriate for the Grade 5.8 steel specification of this handle.
