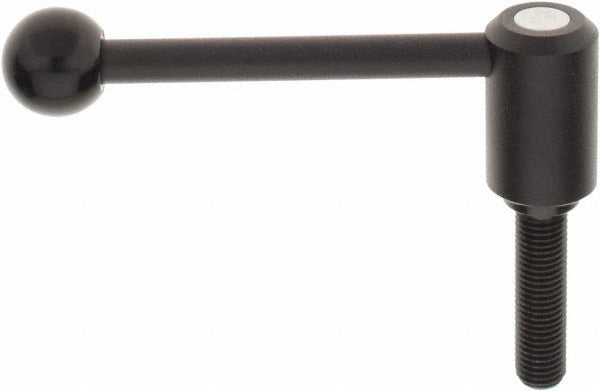

Kipp K0108.3162X60 Adjustable Tension Lever Handle M16x2

Product Description

The KIPP K0108.3162X60 is an adjustable tension lever clamping handle with a threaded stud mount designed for industrial clamping and positioning applications. The handle features a straight steel lever arm with a ball end, a powder-coated black finish, and a Grade 5.8 steel construction for reliable clamping force. The M16x2 threaded stud extends 2.36 inches and is suited for moderate-to-heavy clamping loads. A plastic ball-end knob provides a comfortable grip surface. Overall length is 5.3 inches, making this handle appropriate for applications where a low-profile yet full-travel lever is needed. Machinists, fixture builders, and machine maintenance technicians are the typical installers.

This handle is used in machine tool fixtures, jigs, workholding equipment, and industrial machinery where a quick-adjust clamping lever with a threaded stud connection is required. The straight 0-degree arm angle keeps the lever profile consistent with standard fixture designs. The 1.3-inch hub diameter and 23 mm base diameter suit standard mounting bores common in machine frames and fabricated steel fixtures. Typical environments include manufacturing cells, toolrooms, and assembly fixtures in both light and heavy industrial settings.

Key Features

• M16x2 threaded stud with 2.36-inch stud length for secure clamping engagement
• Grade 5.8 steel construction with powder-coated black finish for corrosion resistance
• Straight 0-degree lever arm with ball-end knob for ergonomic operation
• 1.3-inch hub diameter fits standard fixture mounting bores
• Overall length of 5.3 inches provides sufficient lever travel for most clamping setups
• Steel and plastic (knob) composite construction balances strength and grip comfort

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures and machine tool assemblies requiring an M16x2 threaded stud tension lever clamping handle.

Installation Notes

Installation is performed by maintenance technicians or fixture builders using standard hand tools. De-energize any machine or fixture before installing or replacing clamping handles to prevent unintended movement. Thread the stud into the mating component to the appropriate engagement depth before tightening the locknut or jam nut if present. Do not exceed the rated clamping force for Grade 5.8 hardware as defined by applicable fastener standards.
