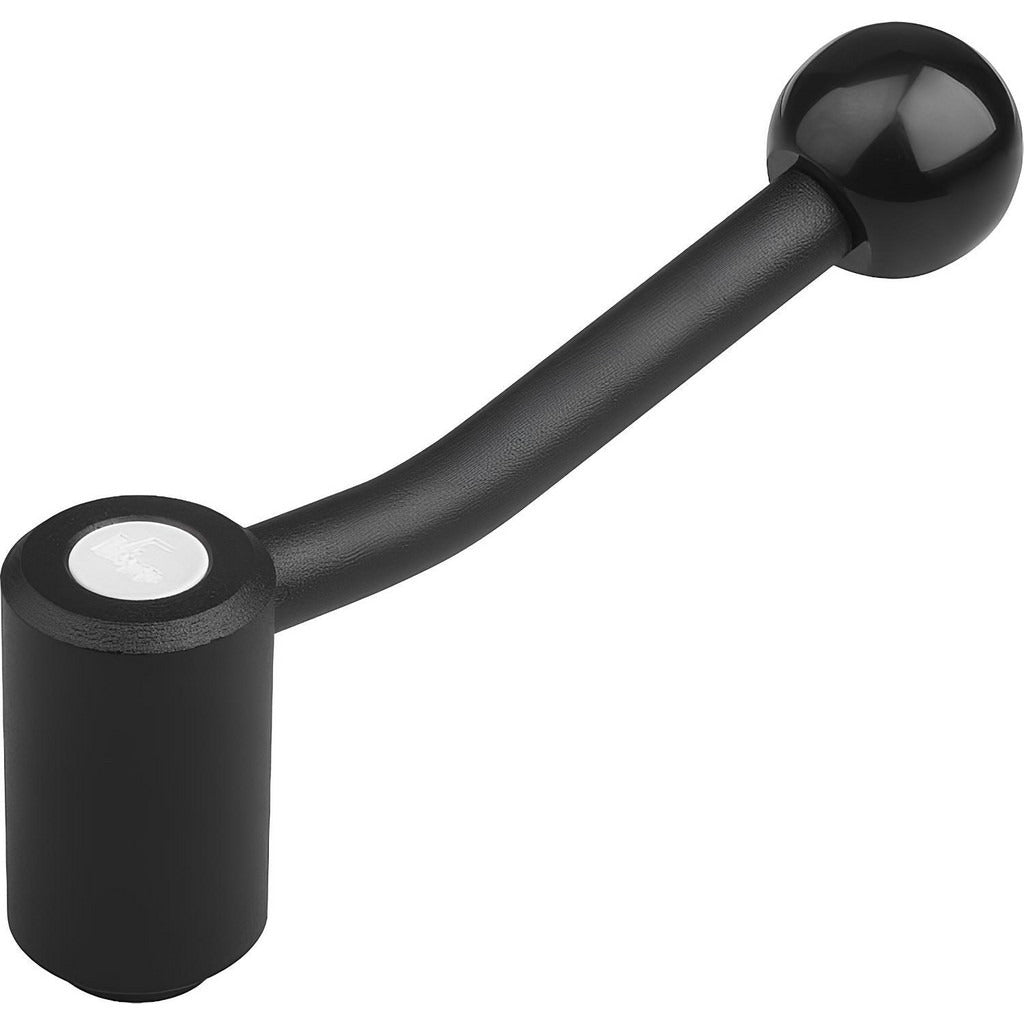

Kipp K0108.3121X60 Adjustable Tension Lever Handle M12

Product Description

The KIPP K0108.3121X60 is an adjustable tension lever clamping handle with a threaded stud connection designed for industrial clamping and positioning applications. The handle uses an M12 x 1.75 threaded stud with a 2.36-inch stud length and a 1.3-inch hub diameter. The steel construction is finished with a powder coat for corrosion resistance and durability in shop and production environments. The ball-end handle arm sits at a 20-degree angle, allowing for ergonomic operation in confined or repetitive-use installations. Machinists, fixture builders, and maintenance technicians install this type of handle on jigs, clamps, machine guards, and equipment access panels.

This clamping handle is suited for use on machine tool fixtures, industrial jigs, workholding equipment, and mechanical assemblies requiring a reliable hand-tightened clamp. The M12 x 1.75 thread is a standard metric size compatible with common threaded inserts and mounting bosses found in manufacturing and production tooling. The handle body measures 33 mm in diameter and 27 mm in height, with an overall assembly length of 5.06 inches. It is appropriate for both light-duty and moderate-load clamping tasks where tool-free adjustment is required.

Key Features

• Adjustable tension lever design allows tool-free hand tightening and repositioning
• M12 x 1.75 threaded stud with 2.36-inch stud length for secure mounting
• Steel body and stud construction rated to Grade 5.8 material specification
• Powder-coated finish on both handle and components for wear and corrosion resistance
• Ball-end handle arm at 20-degree angle for ergonomic grip in tight spaces
• Plastic knob component provides comfortable hand contact during operation

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, jigs, and machine tool assemblies that use a standard M12 x 1.75 threaded stud clamping handle mount.

Installation Notes

Installation is performed by maintenance technicians or fixture builders using standard hand tools. Ensure the receiving threaded boss or insert is clean and free of debris before threading the stud into the mount. Do not exceed the handle design load by using pry bars or extension tools on the lever arm. Verify thread engagement depth is sufficient for the application before placing the assembly into service.
