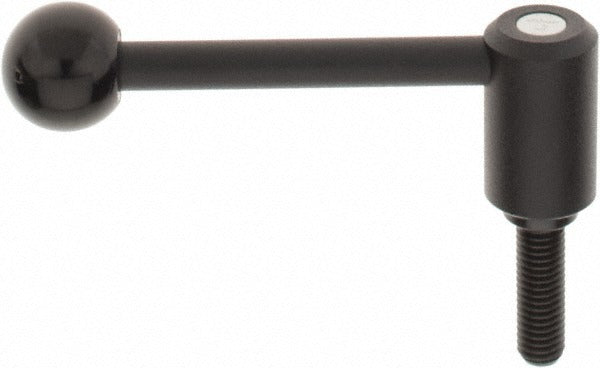

Kipp K0108.2A52X40 Tension Lever Handle 1/2-13 Steel

Product Description

The KIPP K0108.2A52X40 is an adjustable tension lever clamping handle designed for secure, tool-free clamping in industrial, machine tool, and mechanical assembly applications. The handle uses a threaded stud connection in 1/2-13 thread and features a straight, ball-end lever arm made from powder-coated steel. The hub diameter measures 1.10 inches and the stud length is 1.57 inches. A steel-and-plastic construction with a Grade 5.8 material specification gives this handle the structural integrity needed for repetitive clamping cycles. Mechanical technicians, machine builders, and fixture assemblers are the primary installers.

This handle is suited for use on machine tools, jigs, fixtures, and industrial equipment where frequent manual adjustment is required. The adjustable tension lever design allows the operator to reposition the lever arm to a convenient angle before locking, making it practical in tight or awkward mounting locations. Its black powder-coat finish resists light corrosion and wear in typical shop environments. The 1/2-13 threaded stud mounts directly into a tapped hole or pairs with a matching nut.

Key Features

• Adjustable tension lever repositions to a preferred angle for ergonomic operation
• 1/2-13 threaded stud for direct mounting into tapped holes or with a nut
• Straight, ball-end lever arm with 4.37-inch handle radius length
• Grade 5.8 steel construction with black powder-coat finish on handle and components
• Steel-and-plastic knob combination for firm grip with reduced hand fatigue
• Hub diameter of 1.10 inches and stud length of 1.57 inches for consistent fitment

Compatibility

Designed as a standard replacement or new-installation adjustable tension lever clamping handle for machine tools, jigs, and fixtures using a 1/2-13 threaded stud mount.

Installation Notes

Installation is performed by mechanical technicians or machine builders. Shut down and de-energize any machinery before installing or removing clamping handles. Thread the stud into a properly tapped hole to the appropriate engagement depth before tightening. Adjust the lever arm to the desired angle and verify the tension mechanism locks securely before returning the machine to service.
