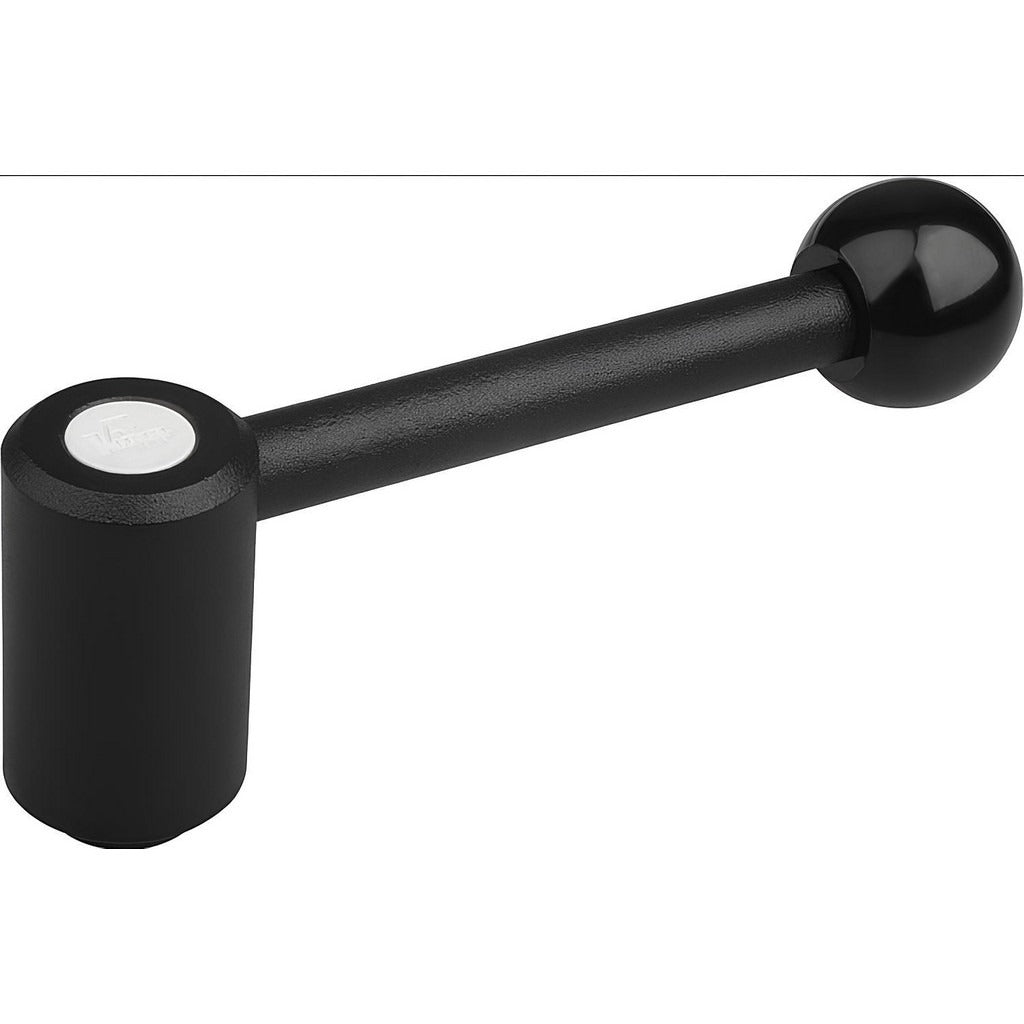

Kipp K0108.2A52X25 Tension Lever Handle 1/2-13

Product Description

The KIPP K0108.2A52X25 is an adjustable tension lever clamping handle with a threaded stud mount, designed for industrial clamping and positioning applications. The handle features a straight, ball-end arm and a spring-loaded tension mechanism that allows the lever position to be adjusted radially without loosening the clamp. The stud thread is 1/2-13, the handle arm extends 4.37 inches, and the overall height is 2.26 inches. The steel construction with a powder-coated finish and Grade 5.8 material specification makes it suitable for demanding machine tool, fixture, and equipment assembly environments. Installation is performed by maintenance technicians and machine builders.

This handle is used on machine tools, jigs, fixtures, and industrial equipment where repeatable hand-tightened clamping is required. The adjustable lever arm allows the operator to reposition the handle to a convenient angle without altering clamping force, which is useful in tight or restricted-access mounting locations. The 1/2-13 threaded stud inserts directly into a tapped hole or receives a mating nut on the opposite side of the workpiece or panel. It is suited for both light manufacturing and heavy-duty fixture work.

Key Features

• Adjustable tension lever arm rotates radially to preferred position without releasing clamp load
• 1/2-13 threaded stud with 0.98-inch stud length for direct installation into tapped holes
• Steel body and stud with Grade 5.8 material specification for strength in clamping applications
• Plastic ball-end knob with powder-coated finish on all steel components
• Straight 0-degree arm style with 4.37-inch handle radius length for adequate leverage
• Hub diameter of 1.10 inches and body diameter of 1.10 inches for consistent seating against mounting surface

Compatibility

Designed as a direct-install replacement or new-build clamping handle for machinery, fixtures, and equipment with a 1/2-13 tapped stud or through-hole mount.

Installation Notes

Install by a qualified maintenance technician or machine builder. Ensure the mating tapped hole or fastener is clean and free of debris before threading the stud. Power down or de-energize any equipment before servicing clamping hardware on active machine assemblies. Do not exceed the hand-tightening load the lever is rated for; use of additional tools to torque the lever arm is not intended for this handle type.
