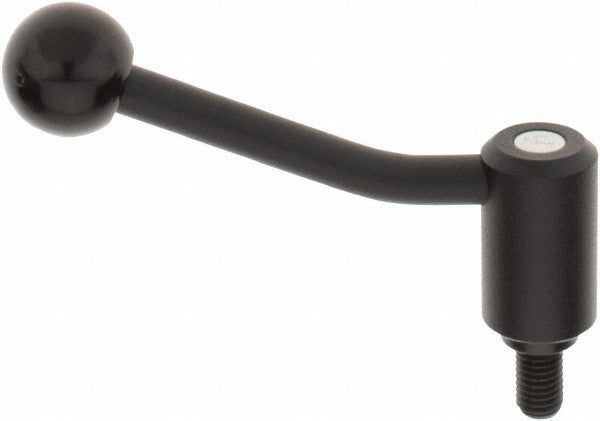

Kipp K0108.2121X20 Tension Lever Clamping Handle M12x1.75

Product Description

The KIPP K0108.2121X20 is an adjustable tension lever clamping handle with a threaded stud mount, designed for securing and positioning components in industrial and mechanical assemblies. The handle features an M12x1.75 threaded stud with a 0.78 inch stud length and a 1.1 inch hub diameter. The steel arm is powder coated black, and the ball-end knob is plastic with a 32 mm diameter. The arm swings at a 20-degree angle and delivers repeatable clamping force through its adjustable tension mechanism. Maintenance technicians, machine builders, and assembly line technicians install this type of handle on fixtures, jigs, and machine guarding where frequent manual adjustment is needed.

This clamping handle is suited for use on industrial machinery, workholding fixtures, automation equipment, and mechanical assemblies requiring repeated hand-tightening and release. The threaded stud connection type makes it straightforward to install into pre-tapped M12x1.75 holes on steel or aluminum components. With an overall length of 4.17 inches and an overall height of 2.69 inches, it fits standard mounting positions on light to medium-duty machine frames and enclosures. Its compact body height of 22.5 mm and body diameter of 28 mm suit tight clearance applications.

Key Features

• M12x1.75 threaded stud mount for direct installation into tapped holes
• Adjustable tension lever allows repeatable clamping and release without tools
• Steel handle arm at Grade 5.8 material specification with powder coat finish
• Ball-end plastic knob, 32 mm diameter, for comfortable manual grip
• 20-degree handle arm angle for clearance in confined mounting locations
• 0.78 inch (20 mm) threaded stud length with 19 mm base diameter

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial fixtures and machinery with M12x1.75 threaded mounting points.

Installation Notes

Installation is performed by threading the stud directly into a pre-tapped M12x1.75 hole. De-energize and lock out any machine or assembly before servicing clamping hardware on moving or pressurized components. Use appropriate thread engagement depth to avoid bottoming out the stud. Verify that the handle arm swing arc is clear of adjacent components before final installation.
