Kipp K0006.1501105X30 Adjustable Clamping Handle M5

Product Description

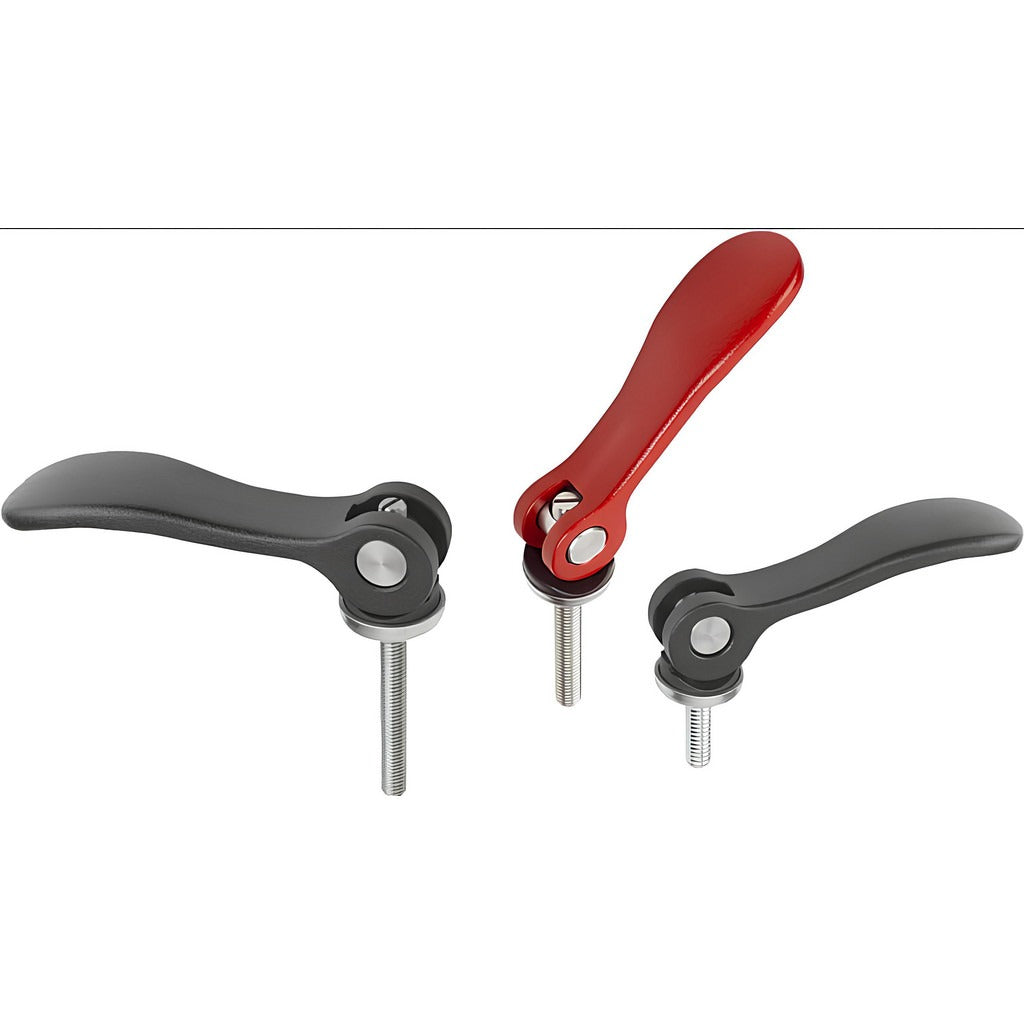

The KIPP K0006.1501105X30 is an adjustable cam lever clamping handle with a threaded stud mount, designed for securing and releasing components in machine, fixture, and industrial assembly applications. The handle features a cast aluminum arm with a powder-coated black finish and a steel threaded stud in M5 x 0.8 thread. The stud length is 1.18 inches with a handle arm that spans 3.12 inches in length and sits 0.87 inches in height. The cam lever design allows for variable-angle positioning, making it well suited for clamping tasks that require frequent adjustment without tools.

This handle is used in light industrial, machine building, and fixture assembly contexts where a compact, low-profile cam lever is needed. The threaded stud mounts directly into a tapped hole, and the variable-arm-angle feature accommodates different clamping positions. It is commonly installed by mechanical assemblers, machine builders, and maintenance technicians working on jigs, fixtures, enclosures, and production equipment panels where quick-release clamping is required.

Key Features

• Adjustable cam lever design allows variable handle arm angle for flexible clamping positions
• Cast aluminum handle arm with powder-coated black finish for durability and corrosion resistance
• M5 x 0.8 steel threaded stud, passivated for corrosion protection, 1.18 inches stud length
• Compact profile: 0.59 inches hub diameter, 0.87 inches handle height, 3.12 inches handle length
• Compliant with REACH and RoHS standards; material specification EN AC-46200
• Thrust washer is powder coated; hinge pin has a bright finish for smooth lever action

Compatibility

Designed as an OEM-style threaded stud clamping handle for use in M5-tapped fixture, jig, and machine assembly applications requiring an adjustable cam lever with a compact form factor.

Installation Notes

Installation is performed by threading the steel stud into a pre-tapped M5 x 0.8 hole by hand or with a standard wrench. Ensure the mating tapped hole depth accommodates the full 1.18-inch stud length before installation. De-energize or lock out any machine or fixture before servicing clamping hardware. Do not exceed the clamping force ratings of the mating component or thread engagement depth.
