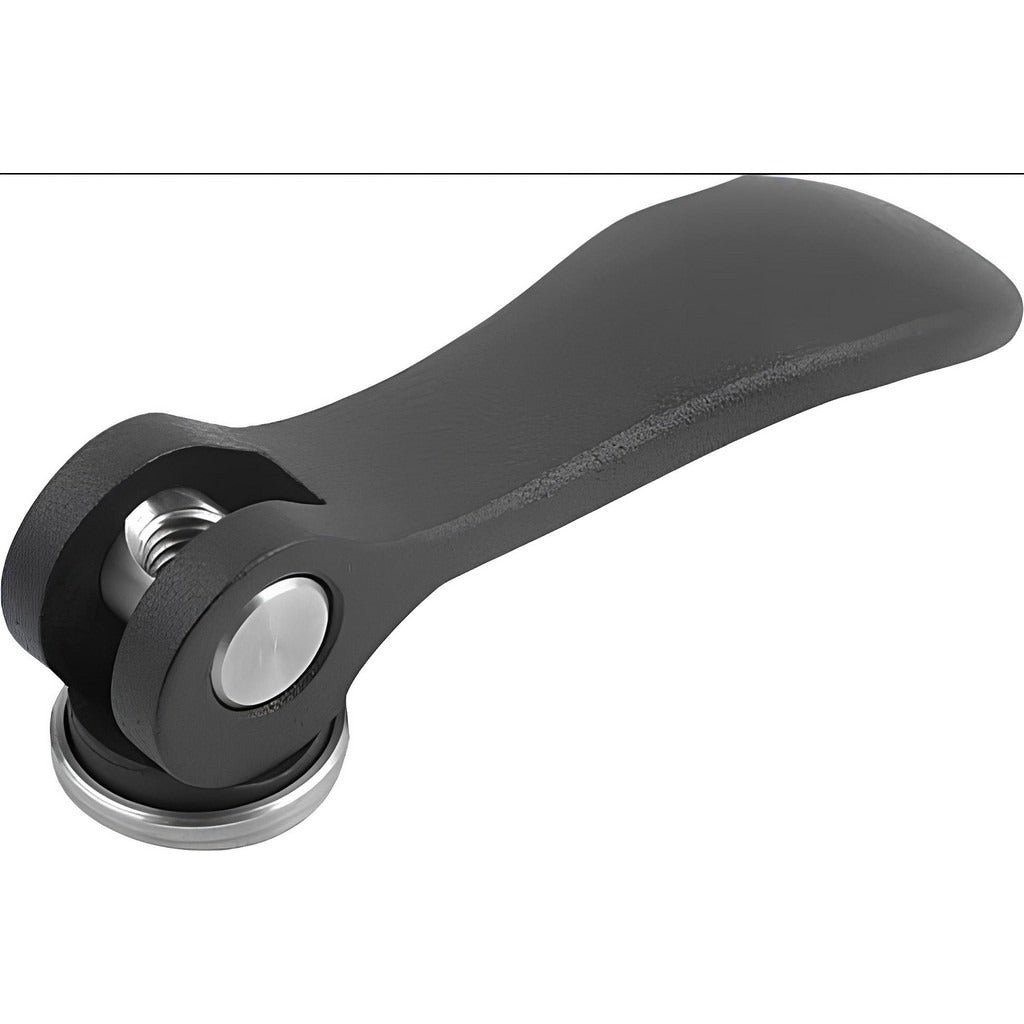

Kipp K0005.25011A3 Adjustable Clamping Handle 5/16-18

Product Description

The KIPP K0005.25011A3 is an adjustable cam lever clamping handle designed for threaded hole mounting in industrial and mechanical assembly applications. Built from cast aluminum with a powder-coated black finish, it accepts a 5/16-18 threaded stud and provides a variable-angle handle arm for flexible positioning. The hub diameter measures 1.06 inches and the handle length reaches 4.252 inches, giving technicians a solid grip footprint in tight fixture setups. The steel stud and hardware components are passivated for corrosion resistance. This handle is specified to EN AC-46200 material standards and is both REACH and RoHS compliant, making it suitable for environments with material content requirements.

Commonly used in machine tool fixturing, workholding, jigs, equipment panels, and mechanical assemblies where repeated hand-tightening and release cycles are required. The adjustable cam lever style allows the handle arm angle to be repositioned to clear obstructions or optimize ergonomic access. Maintenance technicians, machine builders, and fabricators encounter this style of handle on inspection fixtures, enclosure latches, and positioning stops. Its compact hub and moderate handle length suit both bench-top and in-line mounting configurations.

Key Features

• Variable-angle handle arm allows repositioning to clear obstructions or suit operator preference
• Cast aluminum body with powder-coated black finish resists wear and corrosion in shop environments
• 5/16-18 threaded hole connection with 0.709 inch threaded depth fits standard stud hardware
• Steel stud and washer components are passivated for added corrosion protection
• Compliant with EN AC-46200 material specification, REACH, and RoHS directives
• Hub diameter of 1.06 inches and handle length of 4.252 inches deliver a balanced grip-to-torque ratio

Compatibility

Designed as an OEM-style threaded hole clamping handle compatible with fixtures, jigs, and mechanical assemblies using a 5/16-18 threaded stud interface.

Installation Notes

Installation is performed by threading the handle onto a 5/16-18 stud until the hub seats flush against the mounting surface. Ensure the mating stud length does not exceed the 0.709 inch threaded hole depth to avoid bottoming out. No power source or lockout procedure is required, but de-energize or clamp any live mechanical load before adjusting handle arm angle. Use standard hand tools only; do not use impact drivers on the threaded stud.
