King Innovation 95135 Aluminum to Copper Lug (Each)

Product Description

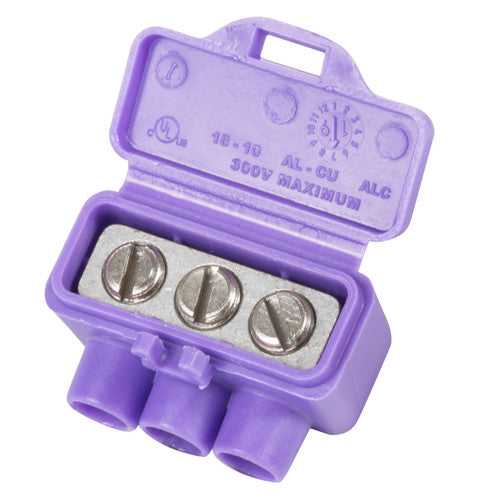

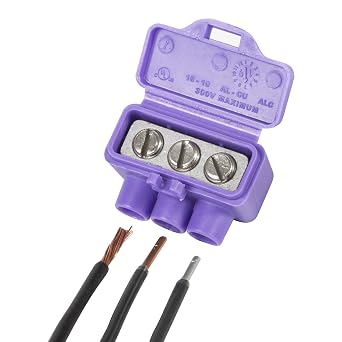

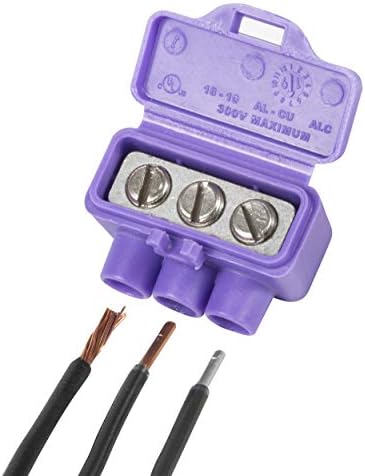

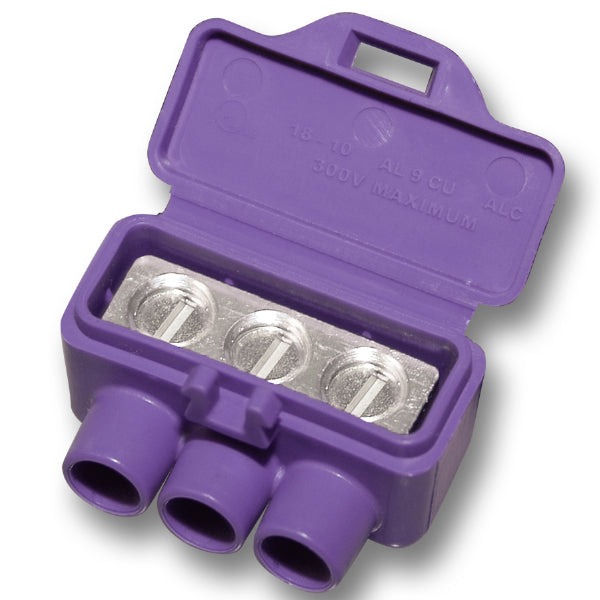

King Innovation 95135 is an aluminum-to-copper lug for wire termination that provides mechanically secured connections between aluminum and copper conductors. The 3-port design accepts one aluminum conductor (12 to 10 AWG) and two copper conductors (18 to 10 AWG). The tin-plated lug and nickel-plated compression screws use set screws to break oxide layers while a silicone dielectric inhibitor resists corrosion. Sold each.

• Three-port lug accepts 12�10 AWG aluminum and 18�10 AWG copper conductors for mixed-metal terminations
• Tin-plated lug with nickel-plated compression screws; set screws break oxide layers for mechanical connection
• Ports contain a silicone dielectric corrosion inhibitor; rated to 300 VAC and 105�C, UL 486C/cULus listed

Product Highlights

3-port Al-to-Cu lug, tin-plated lug, nickel-plated screws, corrosion inhibitor, UL 486C listed, 300 VAC, 105�C

Product Information

Standard Information

• Brand: KING INNOVATION
• Manufacturer Part Number: 95135
• Country of Origin: USA

Technical Specifications

• Brand: King Innovation
• MPN: 95135
• Product Name: Aluminum to Copper Lug
• Ports: 3
• Aluminum AWG Range: 12 to 10 AWG
• Copper AWG Range: 18 to 10 AWG
• Conductor Compatibility: Aluminum to Aluminum, Aluminum to Copper, Copper to Copper
• Voltage Rating: 300 VAC
• Temperature Rating: 105 deg C
• Material / Plating: Tin-plated lug with nickel-plated compression screws
• Corrosion Protection: Ports contain a silicone dielectric corrosion inhibitor
• Connection Type: Screw / Lug (set screws)
• Approvals: UL 486C listed, cULus listed, RoHS compliant
• Package Quantity: Each
• Order Multiple: 100
• UPC: 71936295135
• GTIN: 719362951355
• Item Dimensions: 0.77 in x 1.22 in x 0.65 in
