KING ELECTRIC KB4805-1-T-B1 Unit Heater 5kW 480V 1 Phase

Product Description

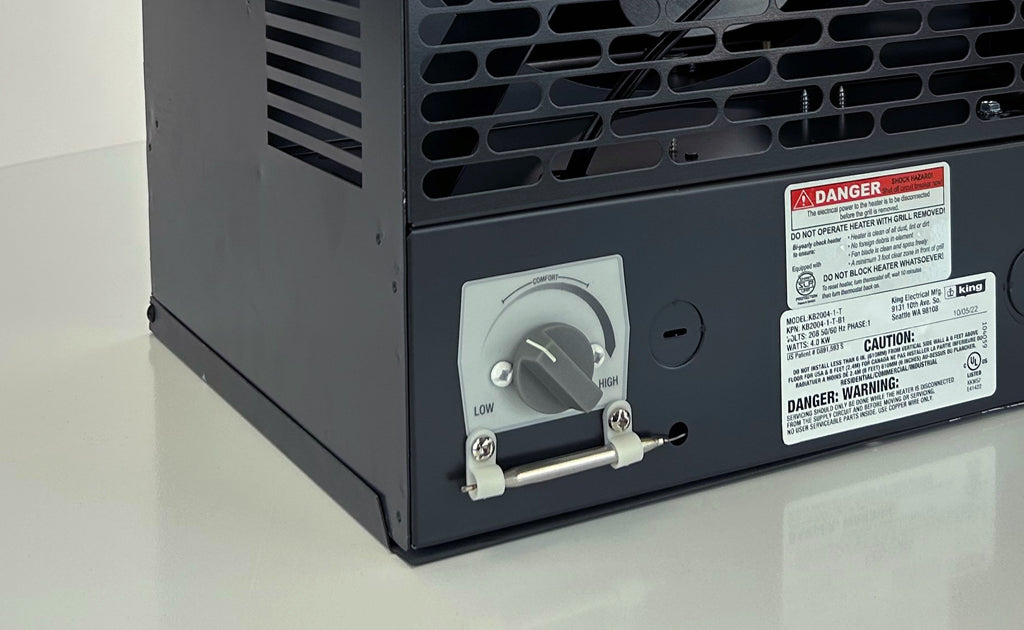

The KING ELECTRIC KB4805-1-T-B1 is a unit heater suitable for primary or supplemental heating in large spaces. This model features spiral finned steel elements that promote even air distribution throughout the area. It comes equipped with an adjustable thermostat for customizable heating and a balanced fan blade for efficient operation. A universal mounting bracket is also included for easy installation.

• Designed for primary or supplemental heat.

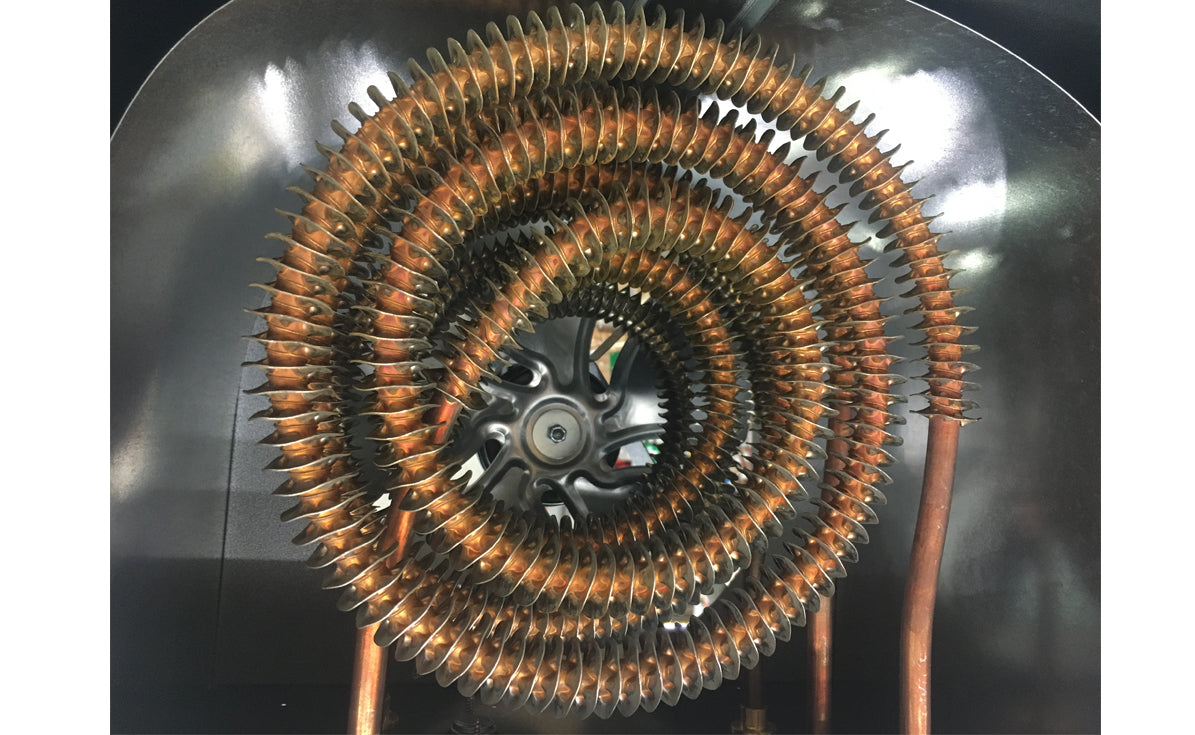

• Equipped with spiral finned steel elements for even air distribution.

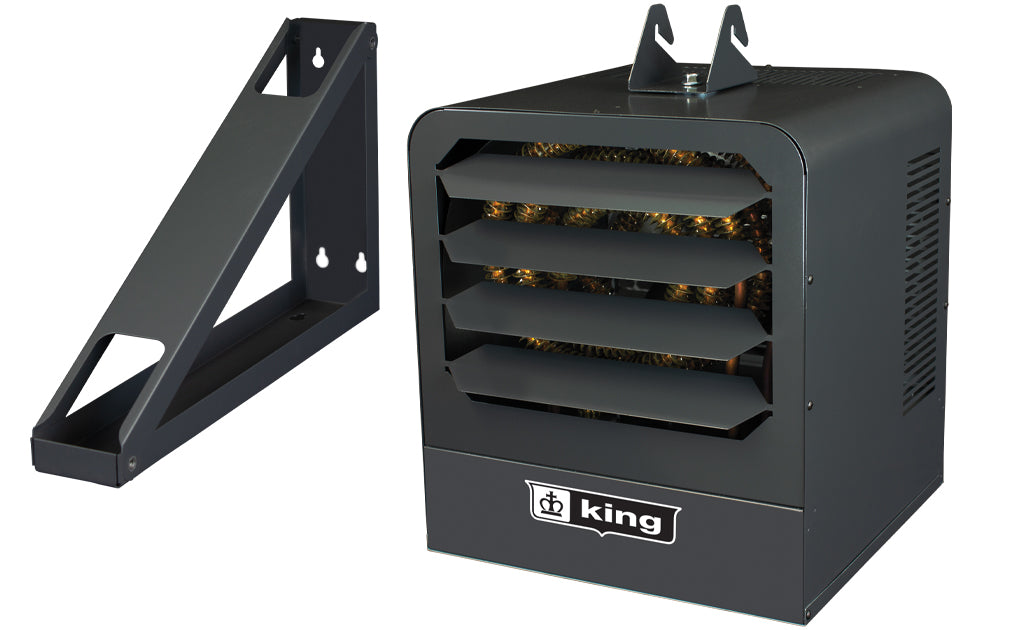

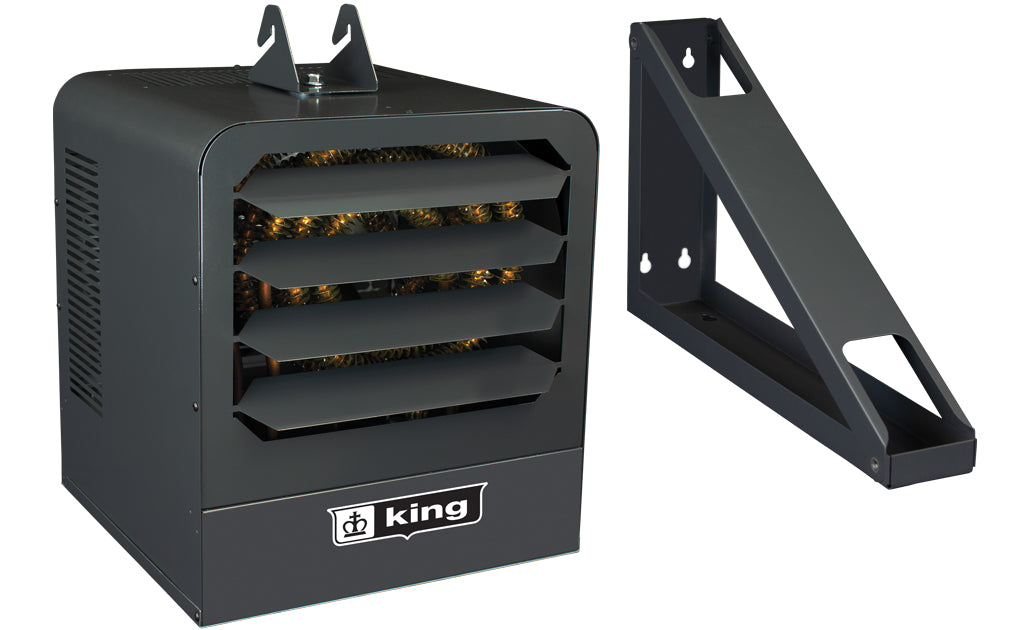

• Includes a universal wall or ceiling bracket.

Product Highlights

This heater is ideal for heating large, exposed areas efficiently.

Product Information

Standard Information

• Part Number: KB4805-1-T-B1
• Power: 17,000 BTU/H

Technical Specifications

• Wattage: 5000W
• Input Voltage: 480V
• Electrical Phase: 1 Ph
• Output Current: 10.4 Amp
• Air Flow (CFM): 520
• Motor HP: 9W
• Temperature Rise: 20
• Air Throw: 15 ft
• Maximum Mount Height: 8 ft
• Control Style: Single Pole
• Material: Steel
• Color / Finish: Gray
• Dimensions: sixteen point five inches x fifteen inches x eleven inches
• Weight: 30.5 lbs
• Certificate: cUL/UL Listed
• Made in USA: YES
• Thermostat Control Voltage: 24W
• Warranty: 5 Yr
