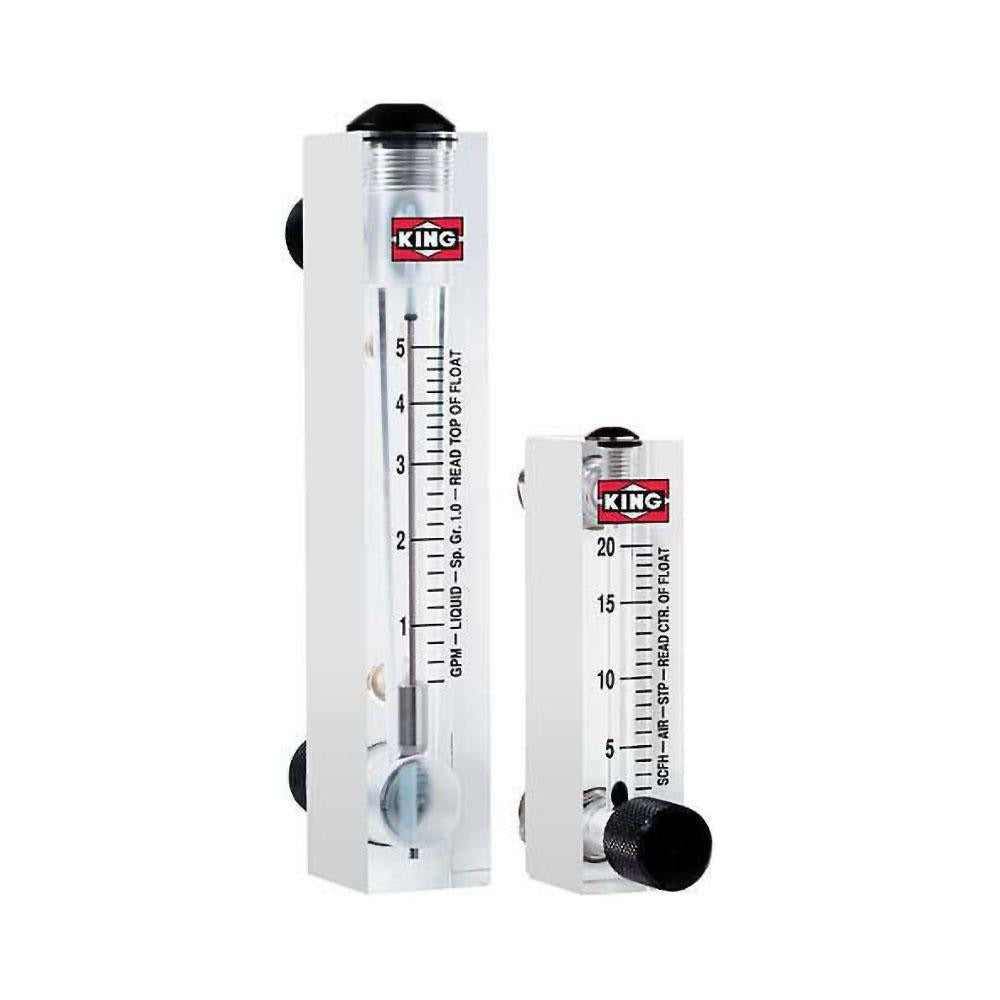

King 75302117C-07 Panel Mount Flowmeter 42 Scfm

Product Description

The KING 75302117C-07 is a block-style, panel mount flowmeter designed for measuring flow rates of air and water in industrial and OEM applications. Rated to a maximum working pressure of 125 psi, this unit delivers a maximum flow capacity of 42 SCFM. The acrylic housing provides direct visual flow reading without additional instrumentation. The flowmeter connects via a 1/2 inch NPT female port and mounts horizontally on a panel surface. It is typically installed by mechanical or HVAC technicians integrating flow measurement into compressed air or water systems. The 2 percent accuracy rating makes it suitable for process monitoring and equipment performance validation.

This flowmeter is suited for OEM equipment builds, panel-fabricated systems, and facility-level compressed air or water distribution monitoring. The horizontal panel-mount design integrates cleanly into control enclosures and equipment panels. It handles both air and water service, making it versatile across HVAC, pneumatic, and light fluid process applications. The block-style body allows secure, rigid mounting with a compact footprint. A 1/2 inch NPT connection interfaces with standard tubing and fittings common in trade installations.

Key Features

• Maximum working pressure of 125 psi for compressed air and water service
• 42 SCFM maximum flow capacity with 2 percent accuracy rating
• 1/2 inch NPT female port for standard trade connections
• Acrylic housing and body for direct visual flow indication
• Horizontal panel-mount orientation with block-style body for rigid installation
• Compatible with both air and water media

Compatibility

Designed for OEM and panel-fabricated systems requiring flow measurement of air or water at up to 125 psi and 42 SCFM through a 1/2 inch NPT connection.

Installation Notes

Installation should be performed by a qualified mechanical or HVAC technician. Depressurize and isolate the line fully before connecting or disconnecting the flowmeter. The unit must be mounted in a horizontal orientation as specified. Use PTFE thread sealant on NPT connections and avoid over-tightening fittings into the acrylic body to prevent cracking.
