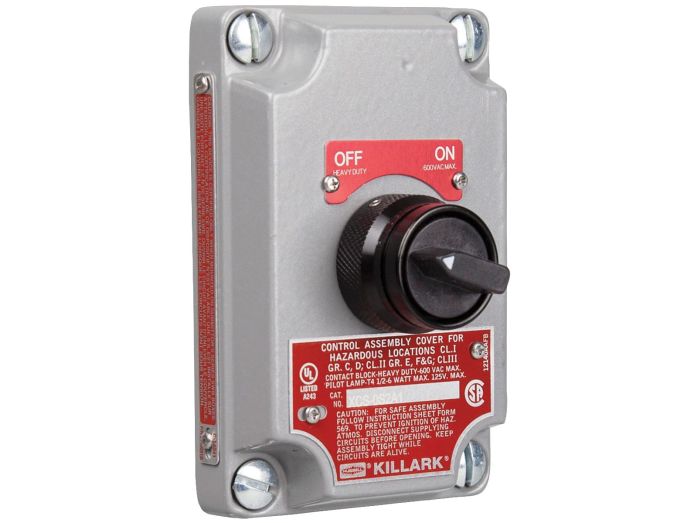

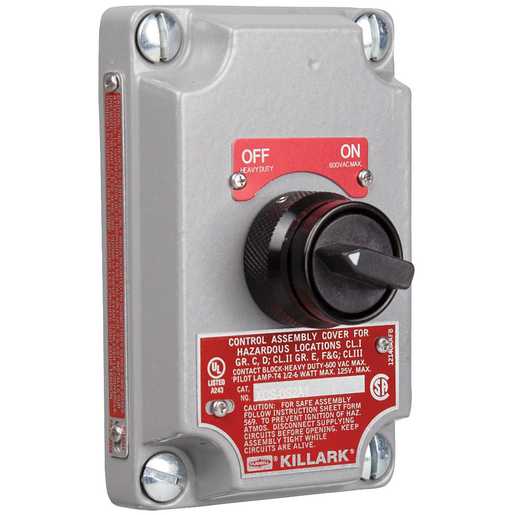

Killark XCS-0S2A5 Control Station Cover 2-Position Selector Switch

Product Description

The Killark XCS-0S2A5 is an aluminum maintained contact 2-position selector switch cover with device, featuring an "Off - On" nameplate and a 2NO/2NC contact rating. It is designed for hazardous locations with flammable gases, vapors, or combustible dust. It is suitable for use in petroleum refineries and chemical plants. UL Listed and CSA Certified.

• Copper free cast aluminum alloy.
• Ground flange joint between bolted cover and box provide required flame path.
• Push button, selector switches and pilot light operator bodies are copper-free aluminum.

Product Highlights

Aluminum cover with a 2-position selector switch for hazardous environments, ensuring safe and reliable control.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: XCS-0S2A5

Technical Specifications

• Action: Rotary
• Actuator: 2 Position Selector Switch
• Application: Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
• Back Box Type: SWB
• Catalog Number: XCS-0S2A5
• Color: Black
• Material: Copper-free aluminum
• Series: XCS Series
• Type: Aluminum Cover With 2-Position Selector Switch
• UPC: 783936890142
• Depth: 3-5/16 in
• Amperage Rating: 10 A
• Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
• Frequency Rating: 50/60 Hz
• Number Of Poles: 1
• CSA File Number: LR11714
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E53360
• Manufacturer Part Number: XCS-0S2A5
• Manufacturer: Killark
• Product Series: XCS
• Family Series: Killark Switches, XCS Series
• Description: CVR W/ DEVICE 2-POS STAND 2NO/2NC MAINT
• Total Number of Devices: 1
• Number of Pushbuttons: 0
• Number of Pilot Lights: 0
• Illuminated: No
• Contact Configuration: 2NO, 2NC
• Hub Size: 3/4 "
• Number of Selector Switches: 1
• Selector Positions: 2
• Selector Type: Key
• Selector Function: Maintained
• Approvals: CSA, UL
