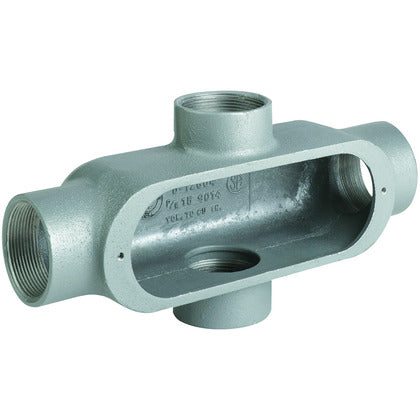

Killark OX-2M Conduit Body, Form 5, 3/4 inches Hub

Product Description

The KILLARK OX-2M is a conduit outlet body with a 3/4" hub. It is designed to provide access to conductors for pulling, splicing, and maintenance. The body has a capacity of 7 cu in and is suitable for use with IMC and RMC conduits. It is also suitable for use in hazardous locations.

• Features set screw hubs.
• Raintight when used with gasketed covers.
• Malleable iron suitable for use in concrete.

Product Highlights

This conduit body is ideal for providing access to conductors in a variety of applications. Its durable construction and hazardous location rating make it a reliable choice for demanding environments.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OX-2M
• Country of Origin: India

Technical Specifications

• Form: Form 5
• Item: Conduit Outlet Body
• Type: Conduit Body
• Color: Gray
• Shape: X
• Width: 3.000 in
• Finish: Tri-Coated
• Height: 2 in
• Length: 7 in
• Series: O Series
• Hub Size: 3/4 in
• Includes: Set Screw Hubs
• Material: Iron
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Standards: CSA, UL
• Body Style: X
• Trade Size: 3/4 in
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Finish Type: Powder Epoxy Paint
• Hub Pattern: X
• Thread Size: 3/4 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Style of Hub: Threaded
• Body Capacity: 7 cu in
• Overall Width: 3 in
• Thread Gender: Female
• Number of Hubs: 4
• Overall Height: 2 in
• Overall Length: 7 in
• Connection Type: Tapered NPT
• Compatible Cover: OL-20M
• Special Features: Set Screw Hubs
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 3/4"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: X
• Hazardous Location Rating: Class I, Division 2, Class I, Zone 2
• Conduit Outlet Body Capacity: 7.0 cu in
• Conduit Outlet Body Hub Size: 3/4 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 3/4 in
• Conduit Outlet Body Hub Style: Threaded
• Country of Origin (subject to change): India
• EU RoHS Indicator: Contact Manufacturer
• UPC: 783936480923
• Gross Weight with Packaging: 1.36
• CSA File Number: LR11852
• Brand: HUBBELL KILLARK
• Country of Origin: IN
• California Prop 65 Warning: N
• NumberOfItems: 1
• Restricted States: []
• Style: Conduit Outlet Body
• Weight: 1.3200
• Part Number: OX2M
• Capacity: 7 cu-in
