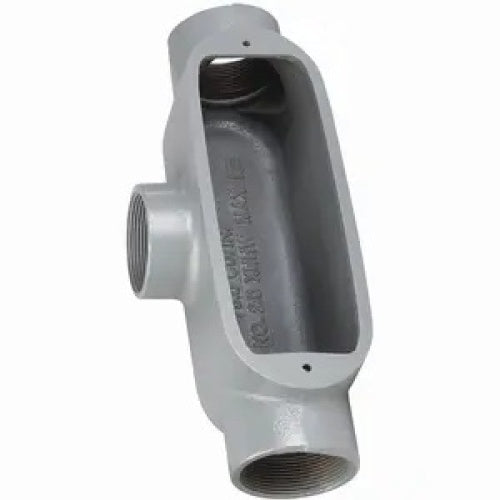

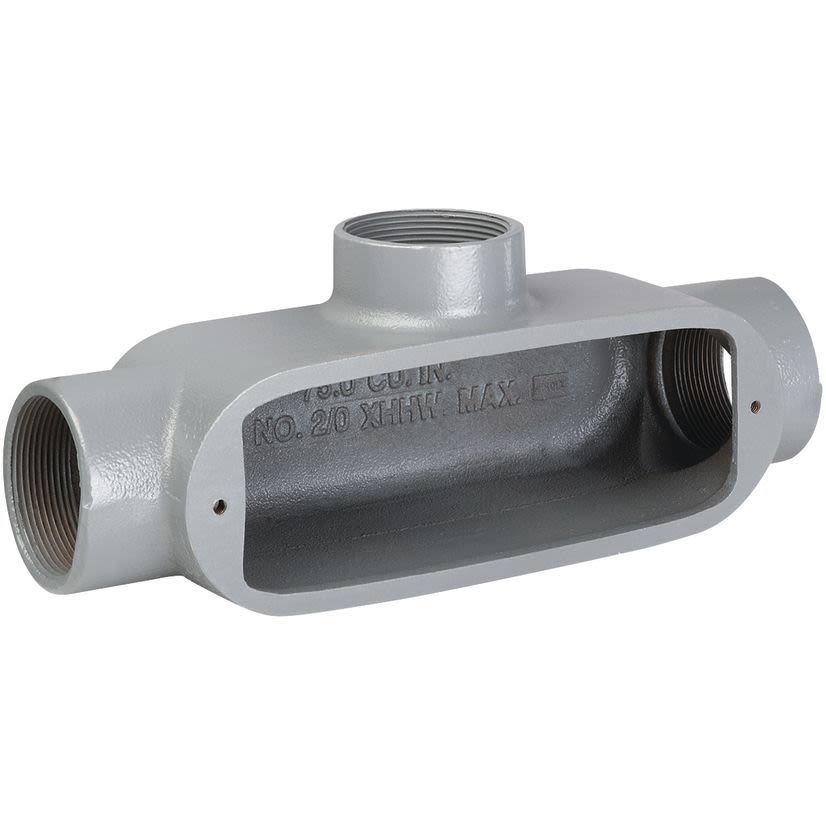

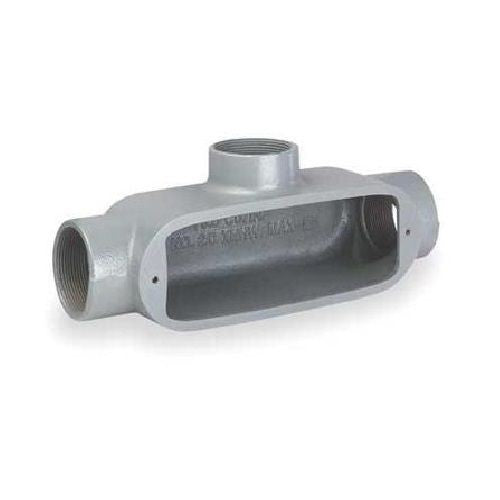

Killark OT-5 o series type t conduit body 1-1/2 in hub

Product Description

The Killark OT-5 is a Duraloy O Series Type T conduit body with a 1-1/2 in hub. It provides access to conductors for pulling, splicing, and maintenance and is threaded for Rigid and IMC Conduit. The Killark range encompasses industrial and explosion proof fittings engineered to withstand the toughest extremes in climate.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Interchangeable with competitive products

Product Highlights

The conduit body is suitable for wet locations and hazardous location applications and is made from copper-free aluminum with an electrostatically applied powder coating.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: OT-5
• Country of Origin: United States

Technical Specifications

• Hub Size: 1-1/2 in
• Material: Aluminum
• Number of Hubs: 3
• Finish: Powder Coated
• Form: 5
• Standard & Approvals: UL E3397 Listed, CSA LR11852 Certified, RoHS Compliant
• Application: For used to provide access to conductors for pulling, splicing and maintenance and threaded for Rigid and IMC Conduit
• Type: Type T
• Series: O
• Connection Type: Tapered NPT
• Catalog ID: KLROT-5
• Capacity: 33 cu-in
• Product Color: Gray
• Manufacturer: Killark
• Component: Fittings
• Size: 1-1/2"
• Sub Component: Conduit Body
• Country of Origin: United States
• Package Type: EACH
