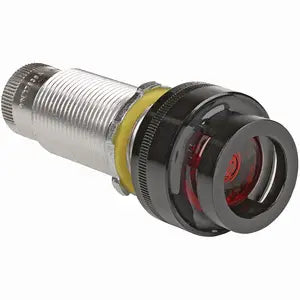

Killark GOB3-R23CN34 G Series Pilot Light Operator 120V

Product Description

The Killark GOB3-R23CN34 G Series pilot light operator is a component used with a hazardous location enclosure to provide control solutions for START/STOP motor functions and LED pilot light indications. It is utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.

• Aluminum construction with stainless steel movable parts.
• 3/4-14 NPSM thread.
• Suitable for hazardous locations.

Product Highlights

The Killark GOB3-R23CN34 pilot light operator is ideal for hazardous locations requiring motor control and LED indication.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GOB3-R23CN34
• Country of Origin: USA

Technical Specifications

• Actuator: Pilot Light
• Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
• Catalog Number: GOB3-R23C N34
• Color: Red
• EU RoHS Indicator: Contact Manufacturer
• Series: GO Series
• Type: Indicator
• UPC: 783936997193
• Depth: 2-3/4 in
• Amperage Rating: 0.025 A
• Frequency Rating: 50/60 Hz
• Voltage Rating: 250 V
• CSA File Number: LR11714
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups B, C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• Nema Rating: 3, 4, 4X
• UL File Number: E12379
• Part #: GOB3-R23CN34
• Category: Pilot Light
• Manufacturer: HUBBELL KILLARK
• Model/Part#: GOB3R23CN34
• HS Code: 8531809051
• Origin: USA
