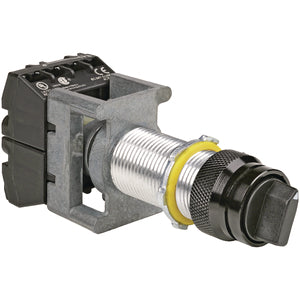

Killark GO5-2A3FN34 G Series Long Maintained Contact 2-Position Selector Switch Operator

Product Description

The Killark GO5-2A3FN34 G Series operator is used with a hazardous location enclosure to provide control solutions for START/STOP motor functions and LED pilot light indications. It is utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use and is UL Listed and CSA Certified. Operators are aluminum with stainless steel movable parts.

• Suitable for hazardous locations when installed in appropriate enclosures.
• Features a 2-position selector switch.
• Constructed with aluminum and stainless steel components.

Product Highlights

The Killark GO5-2A3FN34 is ideal for control solutions in hazardous locations. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GO5-2A3FN34
• Country of Origin: United States

Technical Specifications

• Action: Rotary
• Actuator: 2 Position Selector Switch
• Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
• Catalog Number: GO5-2A3F N34
• Series: GO Series
• Type: Selector Switch
• UPC: 783936997209
• Height: 1.75 in
• Length: 6.5 in
• Width: 2.25 in
• Amperage Rating: 10 A
• Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
• Frequency Rating: 50/60 Hz
• Number Of Poles: 1
• CSA File Number: LR11714
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups B, C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• Nema Rating: 3, 4, 4X
• UL File Number: E12379
• Positions: 2
• VAC: 600
• Brand: Hubbell/Killark
• MPN: GO5-2A3F-N34
• Country of Origin: United States
• Manufacturer Part Number: GO5-2A3FN34
• Manufacturer: Killark
• Product Series: G
• Family Series: Killark Switches, G Series
• Description: SWITCH, SEL MC 2POS 1NO/1NC
• Illuminated: No
• Number of Positions: 2
• Selector Function: Maintained
• Operator Type: Knob
• Contacts: 1NO, 1NC
• Operator Color: Black
• Bezel: Plastic Round
• Terminal Type: Fingersafe Screw
• Approvals: CSA, UL
• Comments: Long
• Net Weight: 0.535 lbs
• Gross Weight: 0.62 lbs
• Part #: GO5-2A3F N34
• Category: Selector Switch
