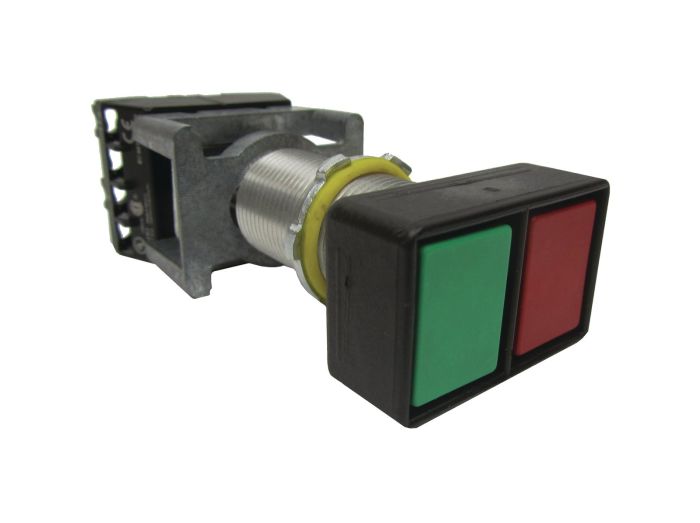

Killark GO22-GR12D G Series Double Push Button Operator

Product Description

The Killark GO22-GR12D is a G Series double push button operator for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. It is UL Listed and CSA Certified.

• Aluminum construction with stainless steel moving parts.
• Threaded bodies are all 3/4"-14 NPSM thread.
• Suitable for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas.

Product Highlights

This Killark G Series double push button operator provides control solutions for START/STOP motor functions and LED pilot light indications.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GO22-GR12D

Technical Specifications

• Catalog Number: GO22-GR12D
• Series: GO Series
• Type: Push Button
• UPC: 783936222882
• Amperage Rating: 10 A
• Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
• Frequency Rating: 50/60 Hz
• Number Of Poles: 2
• CSA File Number: LR11714
• UL File Number: E12379
• Manufacturer Part Number: GO22-GR12D
• Manufacturer: Killark
• Product Series: G
• Family Series: Killark Switches, G Series
• Description: DBL PB SHORT START/STOP
• Illuminated: No
• Operation: Momentary
• Contacts: 1NO, 1NC
• Bezel: Plastic Square
• Lens/Button Shape: Square Flush
• NEMA Rating: NEMA 3, NEMA 4, NEMA 4X, NEMA 7, NEMA 9
• Approvals: CSA, UL
• Comments: Short, Start/Stop or Blank
• Action: Momentary
• Actuator: Double Pushbutton
• Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
• EU RoHS Indicator: Contact Manufacturer
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
