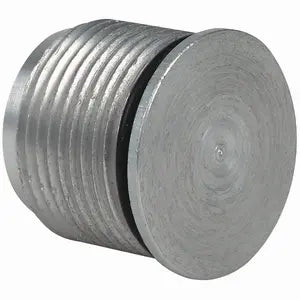

Killark GO-8177 G Series - Hole Plug - 3/4 inches NPSM

Product Description

The Killark GO-8177 is a G Series hole plug with a 3/4" NPSM thread, designed for use with G Series custom control panel operators. It is suitable for hazardous locations, including Class I, Divisions 1 & 2, and Class II & III environments. The plug is UL Listed and CSA Certified.

• Designed for use with G Series custom control panel operators
• Features a 3/4"-14 NPSM thread
• Suitable for hazardous locations

Product Highlights

The Killark GO-8177 hole plug provides a reliable solution for control panels in hazardous environments, ensuring secure closure and compliance with safety standards.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GO-8177

Technical Specifications

• Action: Plug
• Application: For use with G Series custom control panel operators.
• Catalog Number: GO-8177
• Series: GO Series
• Type: Hole Plug
• UPC: 783936220444
• Height: 1.25 in
• Length: 6.31 in
• Width: 2.25 in
• CSA File Number: LR11714
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups B, C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• Nema Rating: 3, 4, 4X
• UL File Number: E150827
