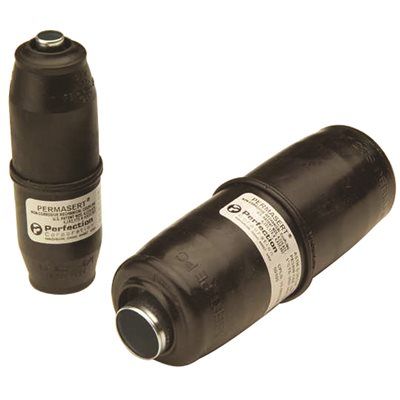

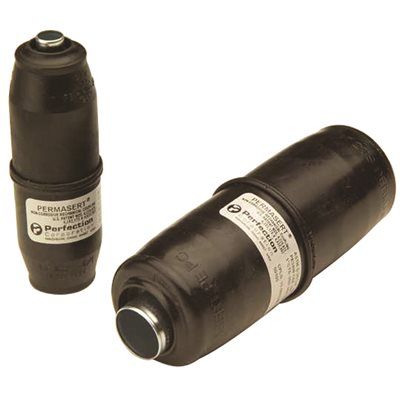

Kgm Inc pc50601 Mechanical Coupling 1 Inch Ips

Product Description

The KGM INC pc50601 is a 1-inch IPS PermasertPlus-style mechanical stab coupling designed for joining polyethylene pipe in gas distribution and water service applications. Built from PE4710 and bimodal PE3408 material, this fitting accepts a push-and-stab connection method that eliminates the need for heat fusion equipment in the field. It is rated for a maximum operating pressure of 125 psig and is engineered to withstand a hoop stress of 670 psig, making it suitable for demanding underground service installations. Licensed plumbers, gas fitters, and utility contractors are the primary installers of this fitting type.

This coupling is used where a fast, reliable mechanical connection to 1-inch IPS polyethylene pipe is required. Typical applications include residential and commercial natural gas service lines, propane distribution systems, and potable water mains where PE pipe is the specified material. The stab-fit design allows for efficient installation in trench work and repair situations where fusion tools are unavailable or impractical.

Key Features

• 1-inch IPS polyethylene pipe connection via mechanical stab-fit design
• Compatible pipe material: PE4710 and bimodal PE3408 polyethylene
• Maximum operating pressure: 125 psig
• Hoop stress rating: 670 psig for high-integrity joint performance
• No heat fusion required — tool-free stab connection reduces field labor
• Suited for underground gas distribution and water service installations

Compatibility

Designed for use with 1-inch IPS polyethylene pipe conforming to PE4710 or bimodal PE3408 material standards in mechanical stab-coupling applications.

Installation Notes

Installation should be performed by a licensed plumber or certified gas fitter in accordance with applicable codes such as IFGC or AWWA standards for polyethylene pipe systems. Depressurize and purge the line before making or breaking any connections. Ensure pipe ends are cut square, deburred, and cleaned of dirt or moisture before inserting into the coupling to achieve a proper seal. Do not exceed the rated maximum operating pressure of 125 psig in service.

Technical Specifications

• Pipe Size: 1 inch IPS
• Connection Type: Mechanical stab fitting
• Pipe Material Compatibility: PE4710 / Bimodal PE3408
• Maximum Operating Pressure: 125 psig
• Hoop Stress Rating: 670 psig

Standard Information

• Brand: KGM INC
• Manufacturer Part Number: pc50601
