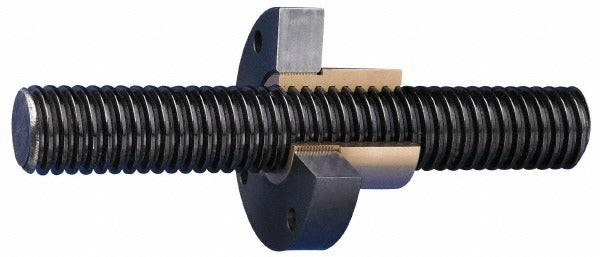

Keystone Threaded Products KT016AC1A182865 Threaded Rod

Product Description

The KEYSTONE THREADED PRODUCTS KT016AC1A182865 is a Precision ACME threaded rod machined from Grade 304 stainless steel. It measures 6 feet in overall length with a 1-10 thread size, meaning a 1-inch nominal diameter at 10 threads per inch. The thread type is ACME with a 2C fit class, a right-hand single-start configuration, and a Precision ACME Vernier reading designation. At 14.07 pounds, this is a substantial piece of hardware suited for lead screw applications, linear motion assemblies, power transmission, and structural fastening work in corrosive or high-moisture environments. Licensed tradespeople and industrial maintenance mechanics are the primary installers of this rod stock.

This threaded rod is suited for commercial and industrial applications where standard unified thread forms are insufficient. ACME thread profiles provide greater load-bearing capacity and are commonly used in jacks, presses, vises, valve stems, and linear actuators. The Grade 304 stainless steel construction makes it appropriate for wet environments, chemical exposure settings, and food-service or HVAC mechanical rooms where corrosion resistance is a priority. The 6-foot length allows field cutting to custom lengths as required by the installation.

Key Features

• 1-10 ACME thread form with 2C fit class for controlled clearance in power transmission assemblies
• Precision ACME Vernier reading designation for tighter dimensional tolerance
• Right-hand, single-start thread configuration
• Grade 304 stainless steel for corrosion resistance in wet and chemical-exposure environments
• 6-foot length provides flexibility for field cutting to required dimensions
• Weighs 14.07 pounds - full-length stock rod suitable for fabrication use

Compatibility

Designed as an OEM-style or fabrication replacement threaded rod for industrial machinery, linear motion systems, and mechanical assemblies requiring a 1-10 ACME thread profile in Grade 304 stainless steel.

Installation Notes

Installation of ACME threaded rod should be performed by a qualified mechanic or millwright familiar with power transmission hardware. Shut down and lock out any machinery before removing or installing rod components. Use appropriate thread-cutting tools and cutting fluid when shortening the rod to length, and deburr cut ends before threading on mating nuts or flanges. Verify that mating ACME nuts match the 2C fit class to ensure proper clearance and load distribution.
