Keystone Threaded Products KL012AC1A182850 Acme Threaded Rod

Product Description

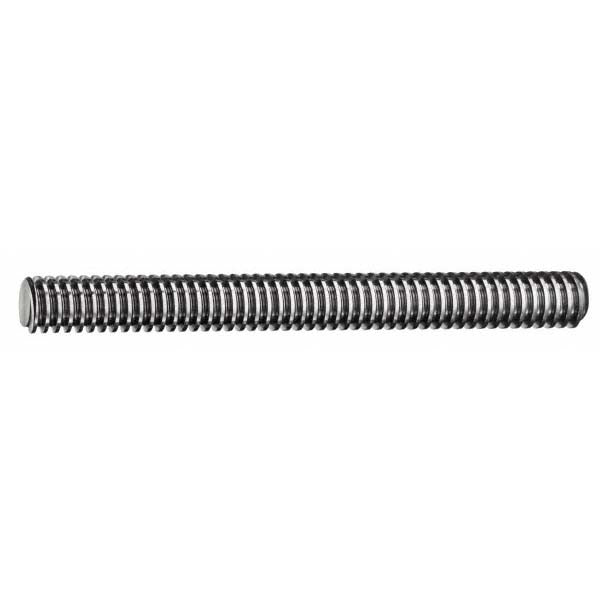

The KEYSTONE THREADED PRODUCTS KL012AC1A182850 is a Precision ACME threaded rod in 3/4-6 thread size, manufactured from low-carbon C1018 steel. Measuring 6 feet in overall length, this rod features a right-hand thread with a 2C fit class, making it a standard choice for power transmission, linear motion assemblies, and industrial fastening applications. The ACME thread form provides a strong, load-bearing profile suited for screw-driven mechanisms. Installation is typically handled by machinists, millwrights, or maintenance technicians working on custom-length assemblies or mechanical drive systems.

This threaded rod is used in industrial and commercial settings where ACME thread forms are specified for lead screws, actuators, clamps, and jigs. The 3/4-6 designation indicates a 3/4 inch nominal diameter with 6 threads per inch, which is a common configuration for medium-duty linear motion applications. The full 6-foot length allows the rod to be cut to custom lengths on the job, reducing the need for multiple part numbers in a single project.

Key Features

• Precision ACME thread form for load-bearing and linear motion use
• 3/4-6 thread size with right-hand thread direction
• 2C fit class for standard ACME thread engagement tolerances
• Low-carbon C1018 steel construction for machinability and weldability
• 6-foot length suitable for cut-to-length field fabrication
• UNSPSC Code 31161618 for procurement and catalog classification

Compatibility

Designed for use in assemblies requiring a 3/4-6 Precision ACME threaded rod with a 2C fit class, including lead screw mechanisms, linear actuators, and custom fabricated clamp or jig systems.

Installation Notes

Installation is typically performed by machinists or millwrights using standard thread-cutting tools, dies, or nut-running equipment. Always ensure mating ACME nuts match the 2C fit class and 3/4-6 thread specification before assembly. Wear appropriate eye and hand protection when cutting or threading this rod to length. Consult applicable industry standards for torque and engagement requirements based on the specific load application.
