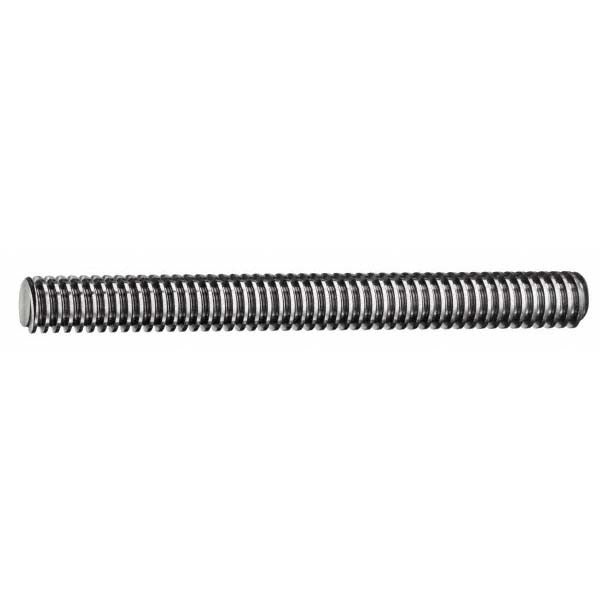

Keystone Threaded Products KL012AC1A182845 Acme Threaded Rod

Product Description

The KEYSTONE THREADED PRODUCTS KL012AC1A182845 is a Precision ACME threaded rod used in linear motion, power transmission, and mechanical positioning applications. Manufactured from low-carbon steel grade C1018, this rod measures 6 feet in overall length with a 3/4-5 ACME thread profile, meaning 3/4 inch nominal diameter at 5 threads per inch. The right-hand, 2C fit class thread is machined to Precision ACME tolerances, making it suitable for lead screw assemblies, jigs, fixtures, and structural adjustment mechanisms. Installers in HVAC, industrial maintenance, and mechanical construction trades commonly work with this rod when fabricating custom hardware or replacing worn lead screw components.

This threaded rod is suited for light-to-medium duty linear drive and positioning work in both commercial and industrial settings. Typical applications include threaded jack assemblies, valve stem actuators, conveyor adjusters, and custom fabricated support structures. Its standard 6-foot length allows cutting to fit a range of project configurations. The Precision ACME 2C fit class provides a controlled clearance fit that supports consistent engagement with compatible ACME nuts and lead-screw assemblies.

Key Features

• 3/4-5 ACME thread profile: 3/4 inch nominal diameter, 5 threads per inch
• Precision ACME thread form with 2C fit class for controlled clearance engagement
• Right-hand thread direction for standard rotation-to-linear-motion conversion
• Low-carbon steel grade C1018 construction for machinability and moderate strength
• 6-foot overall length can be cut to required project dimensions

Compatibility

Designed for use with standard ACME 2C-class nuts, lead-screw assemblies, and threaded coupling hardware machined to 3/4-5 ACME specifications.

Installation Notes

Cutting and installation should be performed by a qualified machinist or maintenance professional using appropriate thread-safe cutting tools. Deburr all cut ends before assembly to protect mating threads. Lubricate thread engagement points with a suitable thread lubricant to reduce wear during operation. Always verify that mating nuts and couplings match the 3/4-5 ACME 2C specification before assembly.
