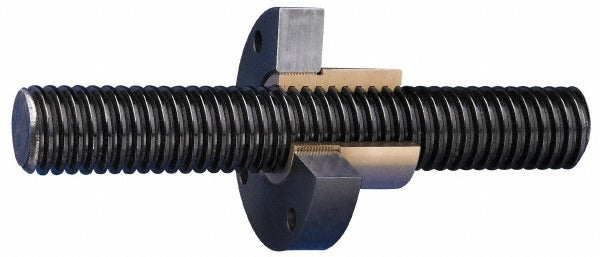

Keystone Threaded Products KB010AC1D091460 Threaded Rod

Product Description

The KEYSTONE THREADED PRODUCTS KB010AC1D091460 is a Precision ACME threaded rod designed for use in linear motion, power transmission, and heavy-load fastening applications. Manufactured from Grade B7 alloy steel, this rod delivers high tensile strength and resistance to mechanical stress. It measures 3 feet in overall length with a 5/8-8 ACME thread profile, 2C fit class, right-hand thread direction, and single start configuration. The Grade B7 designation indicates compliance with high-strength stud bolt material standards, making this rod suitable for demanding industrial and mechanical environments. Weighing 2.43 pounds, it is sized for practical handling during installation.

This threaded rod is used in mechanical assemblies, power screw applications, jigs, fixtures, and structural fastening where ACME thread forms are specified. The Precision ACME designation and 2C fit class indicate a closer tolerance profile suited to applications requiring controlled backlash and repeatable linear positioning. Typical installers include millwrights, mechanical contractors, maintenance technicians, and industrial fabricators working in manufacturing, construction, and equipment assembly contexts.

Key Features

• 5/8-8 Precision ACME thread form for efficient power transmission and load bearing
• Grade B7 alloy steel construction for high tensile strength and toughness
• 2C thread fit class for controlled tolerance and reduced backlash
• Right-hand thread direction, single start configuration
• 3-foot overall length for versatile cut-to-length or full-length use

Compatibility

Designed as an OEM-style replacement or standard stock component for mechanical assemblies, power screw systems, and industrial fastening applications specifying 5/8-8 Precision ACME Grade B7 threaded rod.

Installation Notes

Installation is typically performed by millwrights or mechanical technicians using appropriate threading dies, nuts, and anti-seize compounds compatible with alloy steel. Ensure mating nuts or lead nut assemblies are rated for 2C ACME fit class to maintain proper tolerance engagement. De-energize and lock out any equipment before installing or replacing threaded rod components in power transmission assemblies. Cut to length using appropriate metal-cutting tools and deburr thread ends before assembly to prevent galling.
