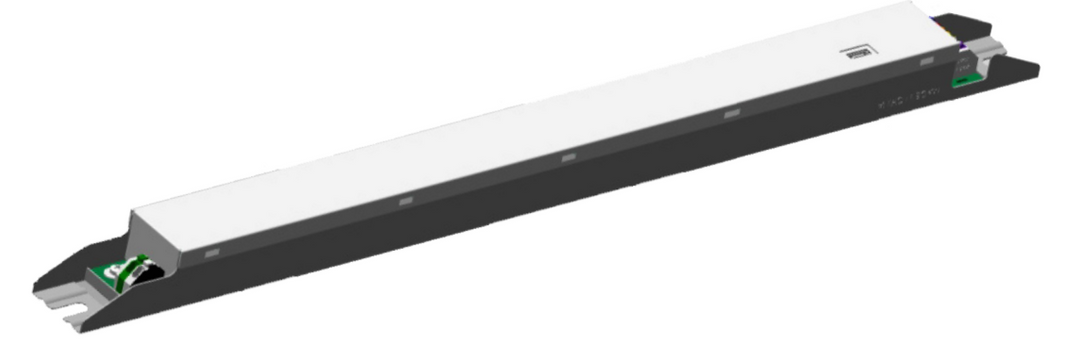

Keystone Technologies Ktld-85-uv-sc2600-56-vdim-u4/usb led driver 85W

Product Description

The KEYSTONE TECHNOLOGIES KTLD-85-UV-SC2600-56-VDIM-U4/USB is an 85W LED driver with constant current output. It supports input voltages of 120V-277VAC and provides an output of 10V-56VDC with a default current of 2600mA (adjustable from 860mA-2600mA). This driver is dimmable via 0-10V protocol and features a power factor greater than 0.9. Includes a USB port for custom programming.

• Constant Current (CC)
• Dimmable 0-10V
• 12V AUX:200mA

Product Highlights

This LED driver is programmable, has a wide input voltage range, and is suitable for various LED lighting applications.

Product Information

Standard Information

• Brand: KEYSTONE TECHNOLOGIES
• Manufacturer Part Number: KTLD-85-UV-SC2600-56-VDIM-U4/USB

Technical Specifications

• Major Group: LED Drivers
• Category: LED Driver
• Input Voltage: 120V-277VAC
• Output Voltage: 10V-56VDC
• Output Current: 860mA-2600mA
• Dimmable: 0-10V
• Power Factor: >0.9
• Length: 16.89"
• Width: 1.18"
• Height: 1.00"
• Max Output Power: 85 Watts
• Integrated USB Port: Yes
• Pre-Programmed: No
• Manufacturer: Keystone Technologies
• MPN: KTLD-85-UV-SC2600-56-VDIM-U4 /USB
• SKU: KTLD-85-UV-SC2600-56-VDIM-U4 /USB
• UPC: 843654136127
• Lighting Technology: LED
• Driver Type: Constant Current
• Wattage: 85 Watts
• Input Current: 0.89A @ 120V; 0.44A @ 240V; 0.38A @ 277V
• Frequency: 50/60Hz
• MTBF: 209,100 Hours @ 40°C
• THD (Total Harmonic Distortion): <20%
• Operating Temperature: 20°C/-4°F to 50°C/122°F
• Max Case Temperature: 90°C/194°F
• Certifications: FCC
• Warranty: 5 Year Standard
