Keystone MH-400A-Q-KIT Metal Halide Ballast Kit 400W M59 Quad

Product Description

The KEYSTONE MH-400A-Q-KIT is a metal halide ballast and capacitor kit for 400 watt MH bulbs. It features ANSI designation M59 or H33, CWA circuit type, and 4 Tap 120/208/240/277 line voltage. It is designed for high-intensity commercial and industrial lighting applications.

• Keystone 400 Watt Metal Halide Kit
• ANSI: M59 or H33
• Line Voltage: 120/208/240/277

Product Highlights

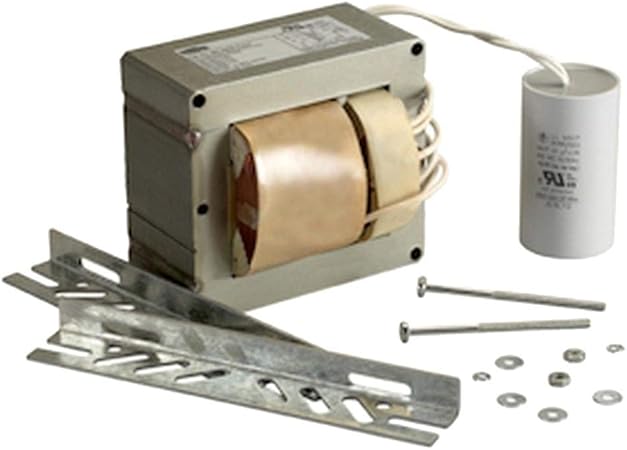

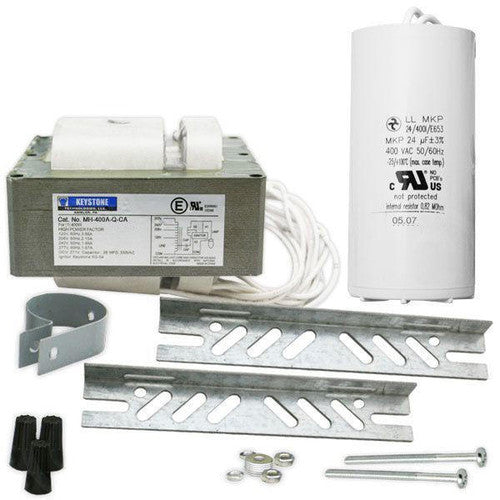

This kit includes a ballast, capacitor, mounting brackets, and hardware. It is RoHS compliant and comes with a 2-year warranty.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: MH-400A-Q-KIT/A

Technical Specifications

• ANSI: M59 or H33
• Form Factor: Core and Coil Transformer
• Line Voltage: 120/208/240/277
• Frequency: 60 Hz
• Circuit Type: CWA (without ignitor)
• Insulation Class: 180
• Capacitor Temperature Rating: 90
• RoHS Compliant: Yes
• Included: Ballast, Capacitor, Mounting Brackets and Hardware
• Lamp: Standard Metal Halide
• Watts: 400
• ANSI Code: M59
• Fixture Type HID: Metal Halide Ballast Kit
• Energy Certification: RoHS
• Light Source Type: HID Ballast
• Light Source Wattage: 400 Watts
• Wattage: 400.00
• Brand Name: KEYSTONE
• Manufacturer: Keystone Technologies
• Manufacturer Part Number: MH-400A-Q-KIT
• Style: Modern
• Material Type: Metal
• Shade Material: Metal
• Model: MH-400A-Q-KIT /A
• Lamp Type: 400W Standard Metal Halide (ANSI M59 or H33)
• Input Voltage: Quad Tap (120/208/240/277V)
• Capacitor Rating: 24 uF, 400V, 90
• Operating Temperature: -30 C (-22 F) minimum start temperature
• Ballast Weight: 10.14 lbs

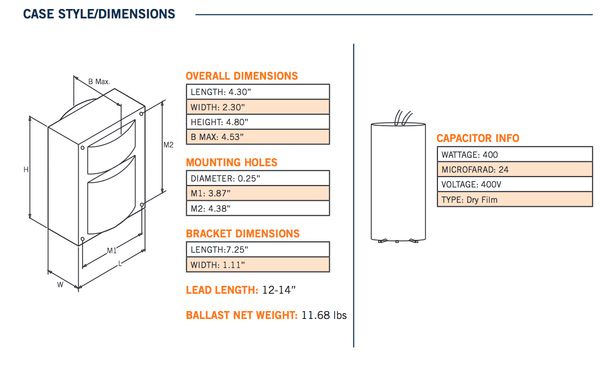

• Mounting Dimensions: 3.87 / 4.37
