Keystone KTS-PIR1-12V-AUX SmartPort LED PIR Occupancy Sensor 12V

Product Description

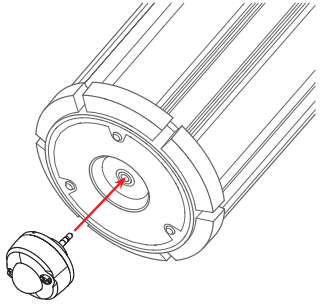

The KEYSTONE KTS-PIR1-12V-AUX is a SmartPort LED PIR Occupancy sensor with on/off functionality and adjustable standby dimming level. It features a 12V input and utilizes a 3.5mm standard AUX port connection method. Designed for use with Keystone's Direct Drive LED Corn Cob lights to increase efficiency and savings. The sensor has a 0–10V output and adjustable standby dimming levels.

• SmartPort LED PIR Occupancy sensor
• On/Off with Adjustable Standby dimming level
• 12V Input
• 3.5mm Standard AUX port connection method

Product Highlights

Smart Port LED PIR Occupancy Sensor with adjustable standby dimming and 12V input. Features a 3.5mm AUX port for easy connection.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KTS-PIR1-12V-AUX
• Country of Origin: China

Technical Specifications

• Catalog Number: KTS-PIR1-12V-AUX
• Manufacturer: Keystone Technologies
• Brand: Keystone
• Country of Origin: China
• Made in USA: No
• UPC: 843654123264
• GTIN: 00843654123264
• Input Voltage: 12 V
• Sensor Type: PIR
• Mounting Method: 3.5mm AUX
• Catalog No: KTS-PIR1-12V-AUX
• Product Type: Occupancy Sensor
• Output Voltage: 0–10V
• Operating Current: 20mA
• Dimming: Adjustable Standby Levels
• Height (in.): 2.06
• Width (in.): 1.69
• Depth (in.): 1.69
• Sensing Technology: Passive Infrared (PIR)
• Features: On/Off with adjustable standby dimming level
• Detection Angle: 120
• Location Rating: IP20
• Current Type: AC
• Output Type: Voltage
• Sensing Method: Passive Infrared
• Nominal Field of View: 120°
