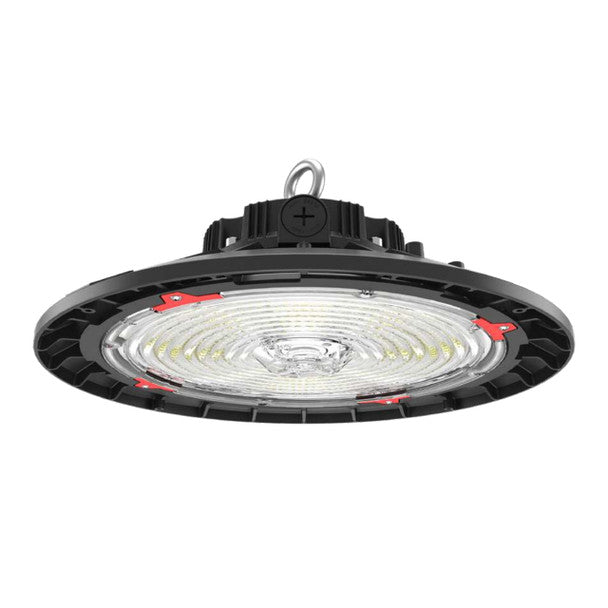

Keystone KTRHLED150PS11C8CSBVDIM XFit LED Round High Bay 70/100/150 Watt

Product Description

The KEYSTONE KTRHLED150PS11C8CSBVDIM XFit Round High Bay is designed for use in gymnasiums, warehouses, and retail spaces. The wattage can be adjusted to 70W, 100W, or 150W, and it is dimmable with 0-10V dimming. The color temperature is switchable between 3000K, 4000K, and 5000K. It features a black aluminum housing with a polycarbonate lens.

• Field adjustable power switch to select between 70W, 100W, and 150W outputs.
• Field-adjustable CCT switch allows selection between 3000K, 4000K, and 5000K color temperatures.
• Includes j-hook and o-ring for suspension mounting.

Product Highlights

Adjustable wattage and color temperature. Includes mounting hardware and 6kV surge protection. 100,000 life hour rating.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KTRHLED150PS11C8CSBVDIM

Technical Specifications

• Manufacturer: Keystone Technologies
• Brand / Product Series: Keystone
• MPN: KT-RHLED150PS-11C-8CSB-VDIM /G2
• Model: KT-RHLED150PS-11C-8CSB-VDIM /G2
• Wattage: 70/100/150 Watt
• Equivalent: 250-400 Watt Metal Halide
• Lumens: 11,910-23,580
• Efficacy: 150-175 lumens / Watt
• Color Temperature (CCT): 3000/4000/5000 Kelvin
• Life Rating: 100,000 Hours
• CRI: 80+
• Voltage: 120/208/240/277
• Frequency: 50/60 Hz
• Power Factor: >0.90
• THD: N/A
• Surge Protection: 6kV
• Operating Temperature: -40°F to 122°F
• Dimmable: Yes, 0-10V
• Options: Standard
• Mounting: Hook and O-Ring
• Housing Material: Aluminum
• Finish: Black
• Lens Material: Polycarbonate
• IP Rating: IP65
• Location Rating: Wet
• Length: 11.44 in.
• Width: 11.44 in.
• Height: 7.43 in.
• UL: Yes
• ETL: No
• RoHS: No
• Energy Star: No
• FCC: N/A
• DLC: Yes
• DLC ID: S-BVBJFS
