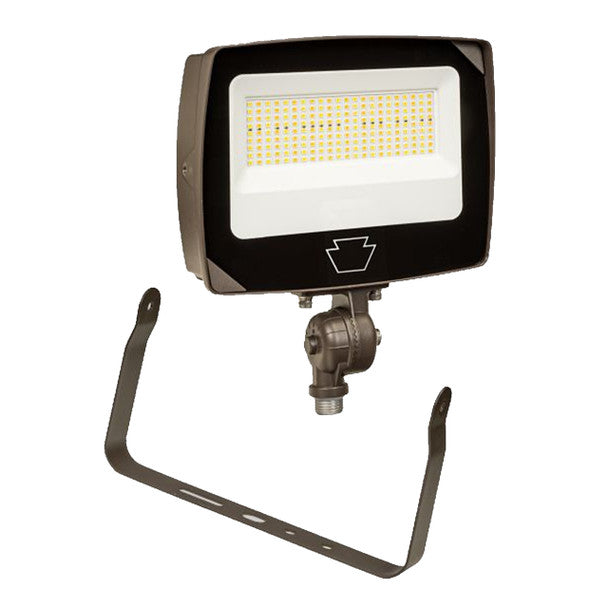

Keystone KTFLED35PSR4AUNV8CSBVIM LED Flood Light 15W/25W/35W

Product Description

The KEYSTONE KTFLED35PSR4AUNV8CSBVIM LED flood light offers dependable and versatile lighting solutions. This LED fixture features a wattage and CCT select, allowing users to choose between 15W, 25W, and 35W, and color temperatures of 3000K, 4000K, and 5000K. It includes a built-in photocell and multiple mounts for easy installation. The flood light has a NEMA 7H x 7V wide floodlight distribution and is IP65 rated.

• Field adjustable power switch to select between 15W, 25W, and 35W outputs.
• Adjustable CCT switch inside the fixture allows selection between 3000K, 4000K, and 5000K color temperatures.
• Includes robust knuckle mount and trunnion mount.

Product Highlights

This LED flood light is an excellent replacement for 70 watt to 175 watt HID fixtures, offering long-life, high-efficacy LEDs with a 50,000 life hour rating and a 5-year warranty.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KTFLED35PSR4AUNV8CSBVIM

Technical Specifications

• Major Group: Fixtures
• Category: LED Fixture
• Manufacturer: Keystone Technologies
• Brand / Product Series: Keystone
• MPN: KT-FLED35PS-R4A-UNV-8CSB-VDIM
• Model: KT-FLED35PS-R4A-UNV-8CSB-VDIM
• Wattage: 15/25/35 Watt
• Metal Halide Equivalent: 70-175 Watt
• Lumens: 2,400-5,250
• Efficacy: 140-160 lumens / Watt
• Color Temperature (CCT): 3000/4000/5000 Kelvin
• Life Rating: 50,000 Hours
• CRI: 80+
• Beam: Flood
• Light Distribution: 7H x 7V NEMA
• Voltage: 120/208/240/277
• Frequency: N/A
• Power Factor: >0.95
• THD: <20%
• Surge Protection: 2.5kV
• Operating Temperature: -40°F to 122°F
• Dimmable: Yes, 0-10V
• NEMA Receptable: No
• Photocontrol: Integrated, On / Off.
• Motion Sensor: No
• Housing Material: Aluminum
• Finish: Bronze
• Lens Material: Glass
• IP Rating: IP65
• Location Rating: Wet
• Mounting: Knuckle & Trunnion
• Length: 8.70 in.
• Width: 7.39 in.
• Height: 2.51 in.
• UL: Yes
• ETL: No
• RoHS: Yes
• Energy Star: No
• FCC: Yes
• Title 20: No
• Title 24: No
• DLC: Yes
• DLC ID: S-Y02CC6
