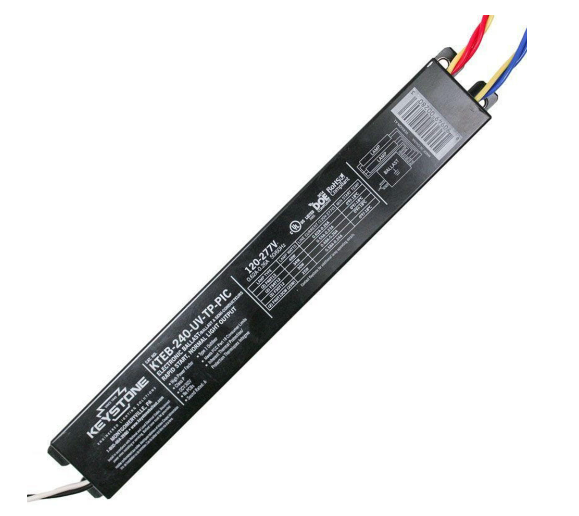

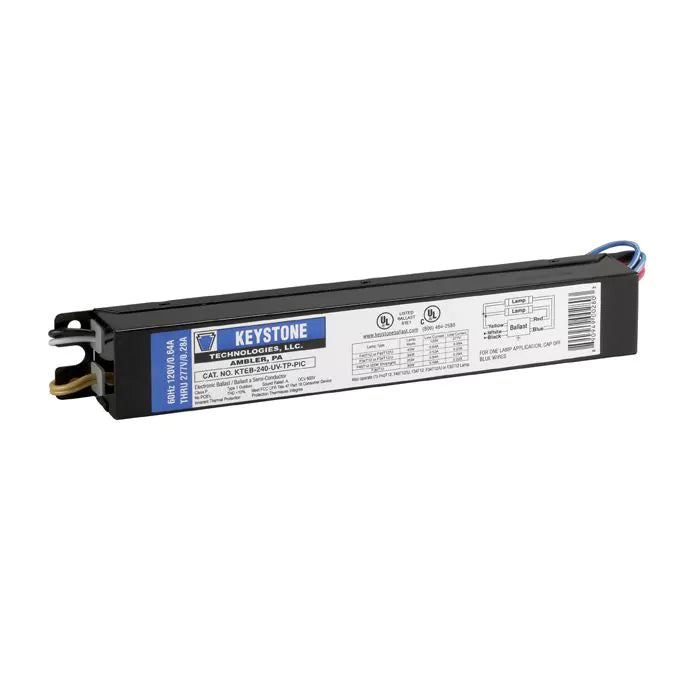

Keystone KTEB-240-UV-TP-PIC T12 Electronic Ballast

Product Description

The KEYSTONE KTEB-240-UV-TP-PIC is a T12 electronic ballast. UL and cUL certified, this ballast is also FCC Part 18 (Class B) compliant and sound rated A. It supports an input voltage of 120-277V and operates within a temperature range of 32°F to 194°F. Recommended for commercial use.

• cUL certified
• FCC Part 18 (Class B) compliant
• Sound Rated: A

Product Highlights

This electronic ballast is UL certified and operates within a temperature range of 32°F to 194°F.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KTEB-240-UV-TP-PIC
• Country of Origin: Unknown

Technical Specifications

• Sound Rated: A
• Input Voltage: 120-277V
• Input Frequency: 50/60 Hz
• Certification: cUL, FCC Part 18 (Class B), UL
• Recommended Use: Commercial
• Lamp: (2/1) F40T12, (2/1) F34T12, (2/1) F40T12ES 25W, (2/1) F30T12 also equivalent U bend
• Features: Rapid Start
• Fixture Type: Electronic Fluorescent
• Number Of Lamps: 1, 2
• Operates: F30T12, F34T12, F40T12, F40T12ES, F34T12/U, F40T12/U
• Wattage: 40 W
• Amperage Rating: 0.62 A
• Ballast Factor: 0.85
• Start Type: Rapid
• Minimum Starting Temperature: 32 deg F
• Power Factor: >=0.98
• Temperature Rating: 194 deg F
• Starting Temperature: 32°F, 0°C
• Lamps: (1 or 2) F40T12 or F40T12/U, (1 or 2) F34T12 or F34T12/U, (1 or 2) F30T12
• Input Power: 85W (2-lamp F40T12)
• Case Material: Metal
• Equivalent Replacement for: Universal B234SR120M-A, B234SR277M-A Philips Advance ICN-2S40-N Benchlite RL-240-1-TP American Ballast AB2-40-PS-UNV
• Lamp(s) Operated: 2 Lamp
• Bulb Type: 2x F34T12/F40T12
• Type: Class P
• Voltage: 120/277V
