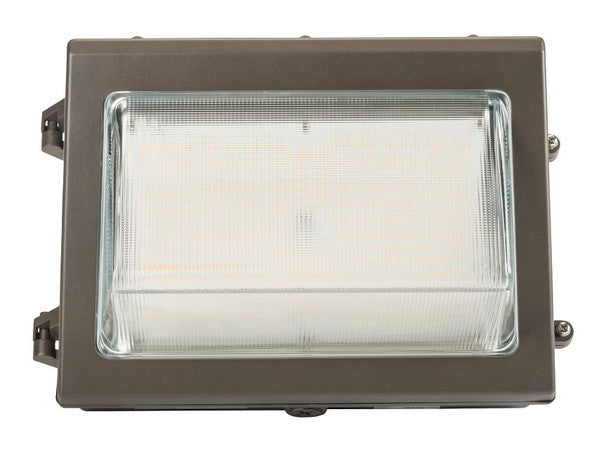

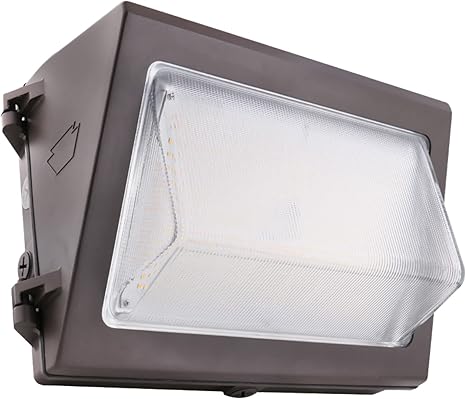

Keystone KT-WPLED80-M1-8CSB-VDIM LED Wall Pack 80 Watt

Product Description

The KEYSTONE KT-WPLED80-M1-8CSB-VDIM LED wall pack is designed for one-for-one replacements to upgrade to energy-efficient LED lighting. This 80W LED wall pack accepts universal 120-277V input and delivers between 10955 and 11925 lumens. It features a selectable color temperature of 3000K, 4000K, or 5000K and has a built-in dusk-to-dawn photocell.

• Dusk to Dawn functionality
• Tunable White light
• Dimmable with Keystone 0-10V dimming drivers

Product Highlights

This LED wall pack is energy efficient and provides significant SKU reduction with its color-selectable feature. Ideal for outdoor use.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-WPLED80-M1-8CSB-VDIM-W

Technical Specifications

• Brand: Keystone
• Model Number: KT-WPLED80-M1-8CSB-VDIM
• Color: Bronze
• Style: Traditional
• Light fixture form: Wall
• Room Type: Outdoor
• Indoor Outdoor Usage: Outdoor
• Other Special Features of the Product: Dimmable, Energy Efficient
• Number of Light Sources: 1
• Light Color: White
• Lighting Method: LED
• Wattage: 80 W
• Water Resistance Level: Water Resistant
• Connectivity Protocol: Wired (0-10V)
• Efficiency: High Efficiency
• Mounting Type: Wall Mount
• Light Output Maximum: 11925 Lumens
• Installation Type: Surface Mount
• Specification Met: ul_listed
• Required Assembly: No
• Style Name: Traditional
• Shade Color: White
• Shade Material: Glass
• Number of Items: 1
• Unit Count: 1 Count
• Brand Name: Keystone
• Included Components: Photocell, Dimming Driver
• Lumens: 10955, 11360, 11925
• Color Temperature: 3000K/4000K/5000K
• Voltage: 120-277V (Universal)
• Dimming: Yes
• Bulb Life: 50000 Hours
• CRI: >80
• Finish: Bronze
• Equivalent: 250-320W
• Case Size: 1
• Color Temperature (CCT): 3000/ 4000/ 5000 K
• Nominal Size: Medium Housing
• Efficacy: 149 lm/W
• Life Hours: 50000
• Maximum Voltage: 120V-277V
• Certificate: cUL/UL Listed, DLC Premium, FCC, Wet Location
