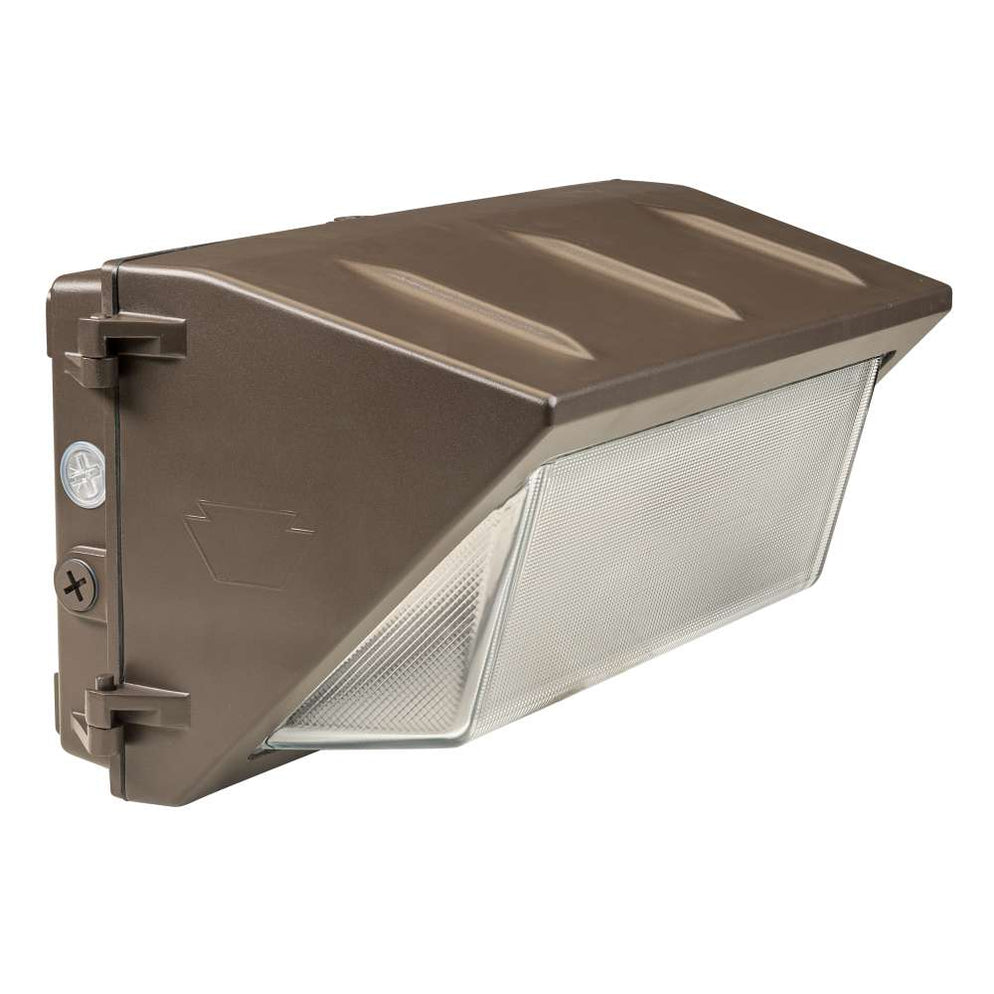

Keystone KT-WPLED120PS-L1-8CSB-VDIM Led Wall Pack 120W

Product Description

The KEYSTONE KT-WPLED120PS-L1-8CSB-VDIM is a traditional open-face LED wall pack designed for exterior building-mounted lighting in commercial and industrial applications. It offers field-selectable wattage at 120W, 100W, or 80W and field-selectable CCT at 3000K, 4000K, or 5000K, allowing a single fixture to serve multiple jobsite requirements without stocking multiple SKUs. The unit operates on a universal voltage range of 120 to 277 volts and supports 0-10V dimming for integration with building controls or photocell-based switching. It is installed by licensed electricians on exterior walls, canopies, and building facades.

This wall pack is suited for wet location installations including parking lots, building perimeters, loading docks, warehouses, and retail exteriors. The included photocell enables automatic dusk-to-dawn operation, reducing manual switching requirements. The bronze die-cast aluminum housing provides durability in harsh outdoor environments. Its DLC Premium listing makes it eligible for utility rebate programs, which is relevant for commercial retrofits and new construction projects where energy incentive documentation is required.

Key Features

• Selectable wattage: 120W, 100W, or 80W — set at time of installation
• Selectable CCT: 3000K, 4000K, or 5000K for application-appropriate color temperature
• Universal voltage input: 120 to 277 volts
• 0-10V dimming for compatibility with low-voltage dimming controls
• Photocell included for automatic dusk-to-dawn operation
• DLC Premium listed — eligible for utility rebate programs
• Rated 50,000 hours average lamp life
• Wet location rated for fully exposed outdoor mounting

Compatibility

Designed as an OEM-style replacement or new-installation LED wall pack for commercial exterior lighting applications where wet location rating, 0-10V dimming, and universal voltage input are required.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power at the circuit breaker before mounting or wiring the fixture. The 0-10V dimming leads must be connected to a compatible low-voltage dimming control; verify control compatibility before final wiring. Operating temperature range of -40 degrees F to 122 degrees F must be observed for proper long-term performance.

Technical Specifications

• Wattage: 120W / 100W / 80W selectable
• Voltage: 120 to 277 volts
• Technology: LED
• CCT: 3000K / 4000K / 5000K selectable
• CRI: 80
• Dimming: 0-10V
• Average Life: 50,000 hours
• Min Operating Temp: -40 degrees F (-40 degrees C)
• Max Operating Temp: 122 degrees F (50 degrees C)
• Housing Material: Die-Cast Aluminum
• Housing Color: Bronze
• Outdoor Rating: Wet Location Rated
• DLC Listed: DLC Premium
• Warranty: 10 Year Limited

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-WPLED120PS-L1-8CSB-VDIM
