Keystone kt-wpled120-l1-8csb-vdim Led Wall Pack 120W

Product Description

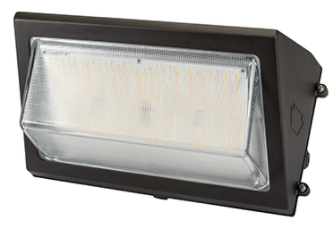

The KEYSTONE kt-wpled120-l1-8csb-vdim is a 120-watt LED wall pack designed as a direct performance replacement for 400-watt legacy fixtures. It delivers 15,600 lumens through a borosilicate glass lens housed in a large, traditional open-face enclosure finished in standard bronze. The 0-10V dimming input gives electrical contractors and facility maintenance teams full control over output levels, reducing energy consumption during off-peak hours. This fixture is suited for outdoor commercial and industrial perimeter lighting applications and is installed by licensed electricians as part of exterior lighting upgrades or new construction.

This wall pack fits exterior building-mounted applications including warehouses, retail facilities, parking structures, and building perimeters where reliable, high-output area lighting is required. The traditional open-face large housing design makes it appropriate for both retrofit installations replacing aging HID or HPS fixtures and new installations where a conventional wall pack profile is specified. The 400-watt equivalent rating simplifies one-for-one fixture swaps on existing circuits sized for legacy lamps.

Key Features

• 120W input power delivers 15,600 lumens — equivalent output to a 400W HID source
• 0-10V dimming input allows continuous output control for energy management
• Borosilicate glass lens for optical clarity and thermal durability in outdoor environments
• Traditional open-face large housing in standard bronze finish suits commercial aesthetics
• Building-mount design for direct wall installation on exterior surfaces

Compatibility

Designed as an OEM-style replacement or upgrade for outdoor wall-mounted commercial lighting positions previously served by 400-watt equivalent HID, HPS, or metal halide wall pack fixtures.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 410 for luminaire wiring and applicable local codes. De-energize the circuit at the breaker and verify with a non-contact voltage tester before opening the junction box. The 0-10V dimming leads require connection to a compatible 0-10V dimming controller or driver; consult the fixture wiring diagram for lead identification. Mount the housing to a listed outdoor junction box rated for the fixture weight.

Technical Specifications

• Wattage: 120W
• Lumen Output: 15,600 lumens
• Wattage Equivalent: 400W
• Dimming: 0-10V
• Lens Material: Borosilicate Glass
• Housing Size: Large
• Finish: Standard Bronze
• Housing Style: Traditional Open Face
• Mounting Type: Wall Pack

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: kt-wpled120-l1-8csb-vdim
